SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Air Flow Parts
09 - Air Flow Parts

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts
12 - Icemaker Parts

No Diagram Image Available
13 - Optional Parts (not Included)


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W10175967 Escutcheon, Meat Pan Control Special Order $ 77.20

3 2182757 Slide Meat Pan Control Special Order $ 75.15

4 2257741 Louver Appelez-nous -
6 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 36.08

7 2319866 Shelf Ladder Special Order $ 22.16

8 WP489478 Screw   (Replaces: W10001260) Special Order $ 7.36

10 W10128726 Air Diffuser Assembly Appelez-nous -
11 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 104.10

12 WPW10276792 Reservoir   (Replaces: 2307107) Special Order $ 130.01

13 W11679940 Light Bulb   (Replaces: W10194422) In-Stock Immediately $ 10.17

14 W11239891 Shield Assy, Light   (Replaces: W10242623) Special Order $ 91.37

15 W10759522 Screw   (Replaces: W10004810) Special Order $ 7.42


    View Diagram in Separate Window     Print Icon   Print Part List

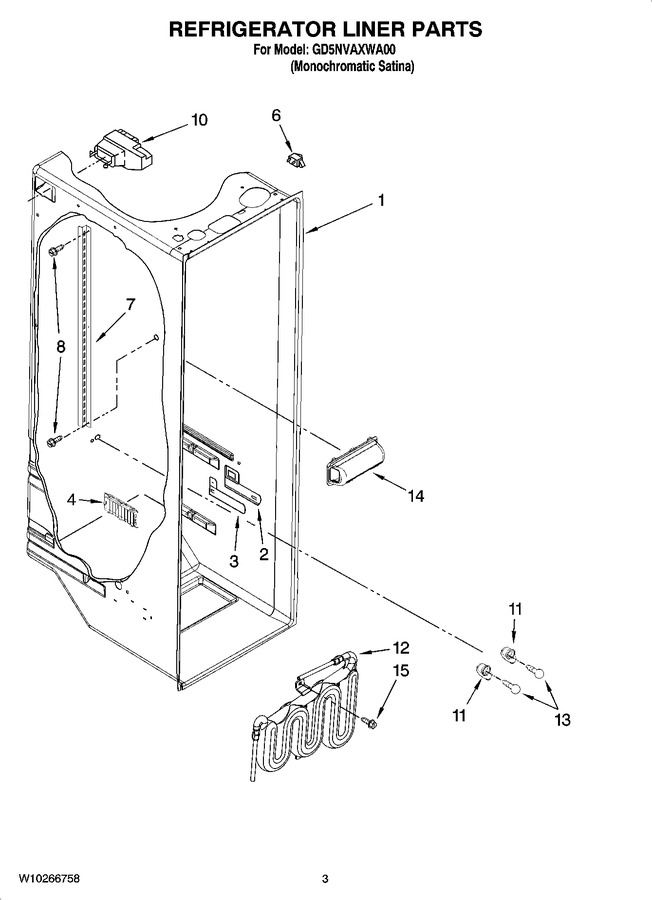

Diagram for GD5NVAXWA00
