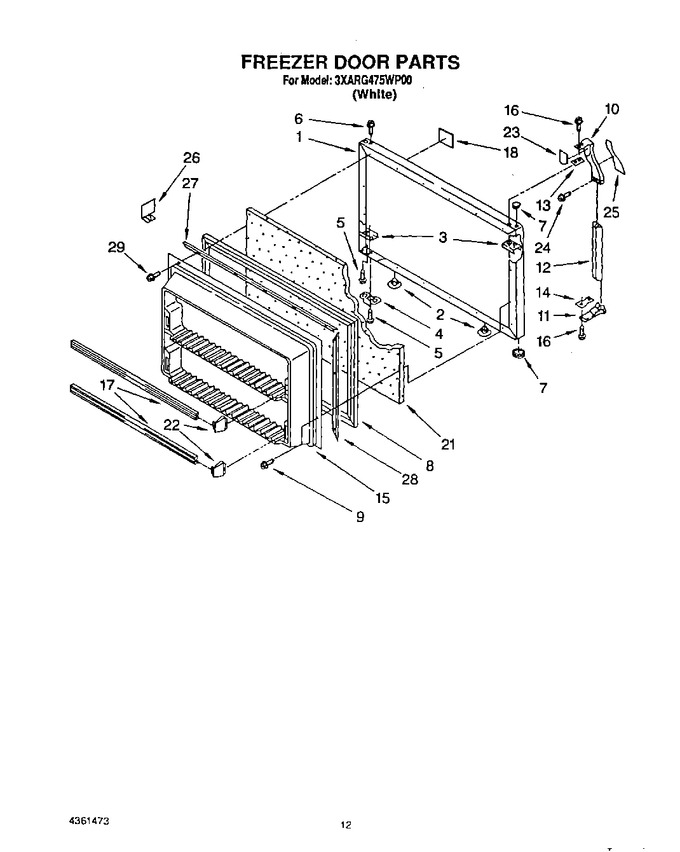

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157708		Panel, Freezer Door (also Order Item 21)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	943185		Plate, Tap		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	1125888		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	944163		Handle End, Top				$ 53.54
11	944157		Handle End		Appelez-nous	-
12	2162586		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1116610		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	2148595		Trim, Door Shelf (2)		Appelez-nous	-
18	2148544		Nameplate		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
21	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90
23	935074		Shim, Endcap (top)		Appelez-nous	-
24	489022		Screw, 6-20 X 3/8		Appelez-nous	-
25	1108828		Insert, Handle		Appelez-nous	-
26	1123293		Divider, Door Shelf (2)		Appelez-nous	-
27	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
28	1115138		Retainer, Gasket Side (2)		Appelez-nous	-
29	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
