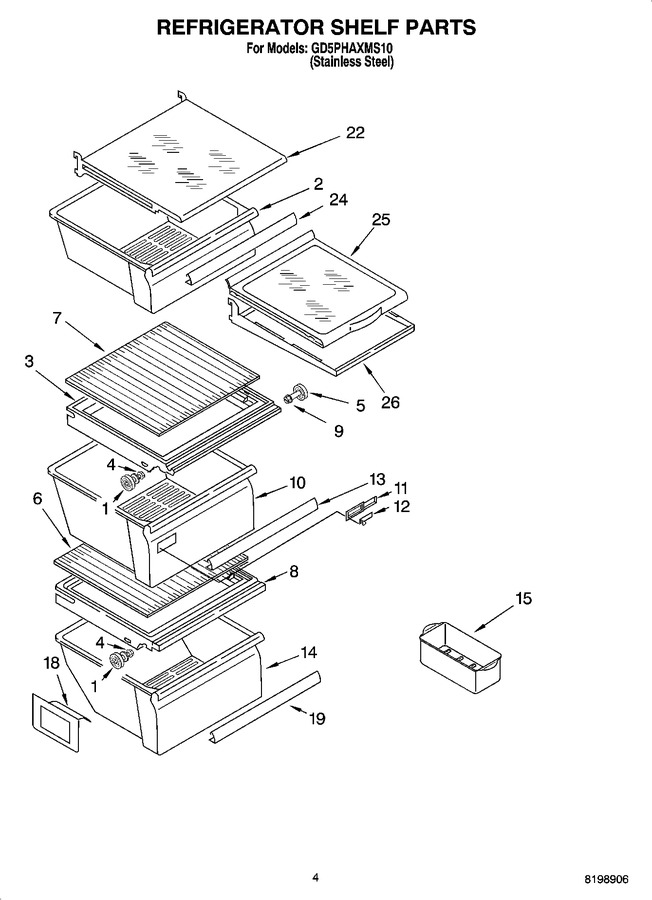

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 13.29 | ||||
| 2 | W11497323 | Snack Bin (Replaces: 2188655) |
|
$ 211.36 | |||||
| 3 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 275.27 | |||||
| 4 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.23 | |||||
| 5 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 9.78 | |||||
| 6 | W10864399 | Glass, Meat Cover (Replaces: 2179259) |
|
$ 208.83 | |||||
| 7 | W10864399 | Glass, Cover (Replaces: 2174150) |
|
$ 208.83 | |||||
| 8 | W10508993 | Cover, Meat Pan (Replaces: 2311726) |
|
$ 275.27 | |||||
| 9 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.29 | |||||
| 10 | WP2188656 | Crisper Pan (Replaces: 2188652) |
|
$ 128.90 | |||||
| 11 | WP2179343 | Front, Crisper Pan (Replaces: 2179343) |
|
$ 30.62 | |||||
| 12 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 27.54 | |||||
| 13 | WP2179234 | Trim, Handle (Replaces: 2255593) |
|
$ 79.71 | |||||
| 14 | WP2188664 | Meat Pan (Replaces: 2188654) |
|
Immediately | $ 83.43 | ||||
| 15 | W10136387A | Egg Bin Assembly (Replaces: 2216624) |
|
$ 17.59 | |||||
| 18 | 2179350 | Deflector |
|
$ 77.30 | |||||
| 19 | WP2179234 | Trim, Handle (Replaces: 2255592) |
|
$ 79.71 | |||||
| 22 | 2206347 | Shelf, Snack Bin |
|
- | |||||
| 24 | WP2179243 | Trim, Handle (Replaces: 2179243) |
|
$ 98.69 | |||||
| 25 | WPW10141748 | Shelf (Replaces: 2194736) |
|
$ 321.89 | |||||
| 26 | 2195975 | Frame, Shelf |
|
$ 84.01 |
