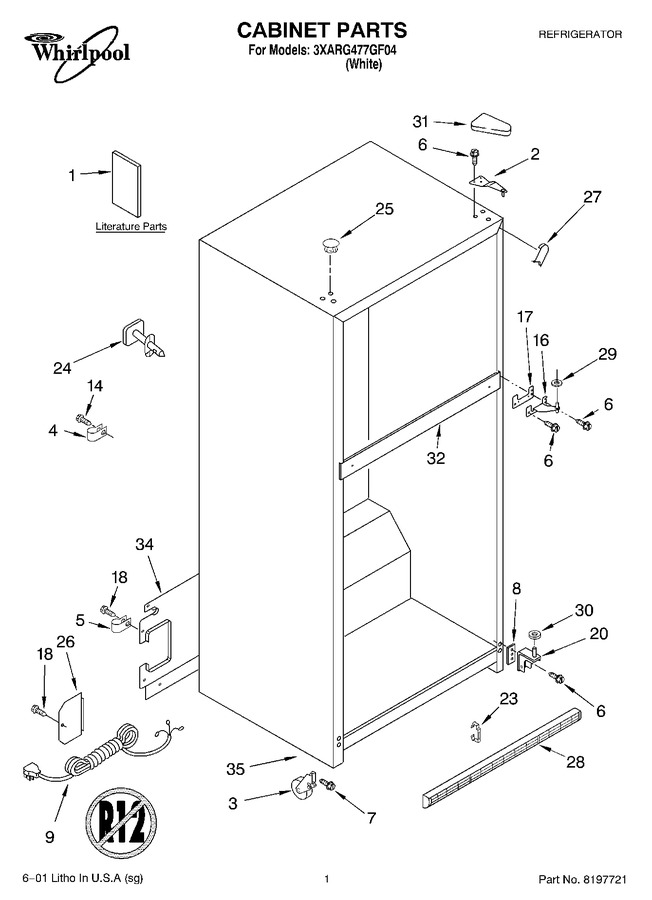

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2212722		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT2187043		Literature Parts (energy Label)		Appelez-nous	-
1	LIT2200596		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 119.42
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	489348		Clamp, Tube		Appelez-nous	-
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
7	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
8	2172743		Shim, Bottom Hinge				$ 33.55
9	2205329		Service Cord		Appelez-nous	-
14	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 9.28
23	2189356		Clip-grille (2)				$ 5.70
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
25	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
26	2166251		Cover, Water Valve				$ 6.43
27	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 8.21
28	WP2254386		Grille   (Replaces: 2201009)				$ 99.26
29	WP489467		Washer-plain   (Replaces: 489341)			Immediately	$ 11.42
30	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 10.74
31	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 20.19
32	N/A		Rail Center (not Serviced)		Appelez-nous	-
34	2254582		Cover, Unit   (Replaces: 2200507)				$ 134.73
	LIT677969		Do-it-yourself Manual Ref/frz		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
