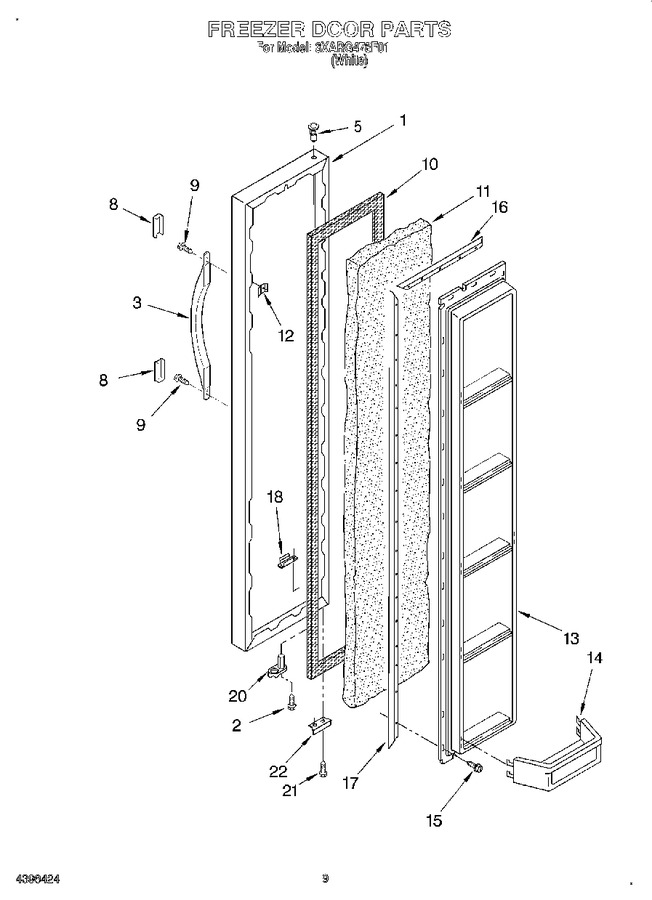

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194613W		Freezer Door Panel		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	2186649W		Handle, Center				$ 70.49
5	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
8	WP2193353W		Endcap, Handle (2)   (Replaces: 2193353W)				$ 8.52
9	WP489491		Screw   (Replaces: 489491)				$ 7.30
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	2196142		Panel, Interior Door		Appelez-nous	-
14	2177865		Trim, Shelf (5)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	1117767		Retainer, Gasket		Appelez-nous	-
17	1117766		Retainer, Gasket				$ 36.55
18	2196135		Tap, Plate				$ 18.96
20	WP2182179		Cam, Door Closer   (Replaces: 2182178)			Immediately	$ 7.20
21	WP489483		Screw   (Replaces: 489420)				$ 11.41
22	2195950		Bracket, Door Stop				$ 5.84
