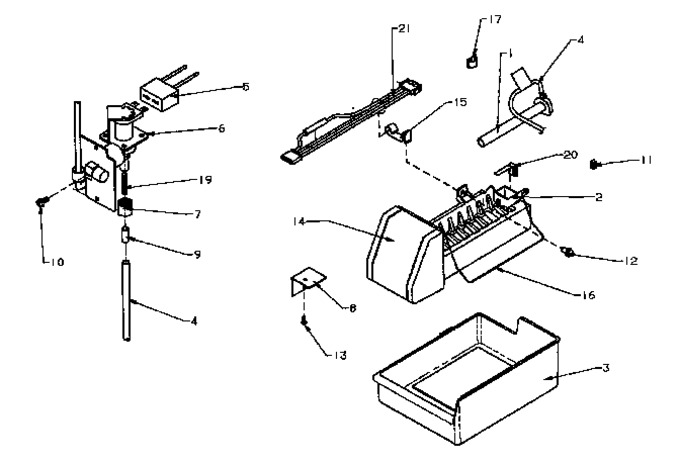

01 - Add-on Ice Maker Assy For R Models
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) |
|
Immediately | $ 107.87 | ||||
| 2 | D7824706Q | Ice Maker (Replaces: D7824702) |
|
Immediately | $ 150.62 | ||||
| 3 | WP67001255 | Use 10476207 (Replaces: 10476201) |
|
$ 191.91 | |||||
| 4 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 11.75 | |||||
| 5 | 10525901 | Harness, Water Valve |
|
$ 8.02 | |||||
| 6 | W10833899 | Kit, Water Valve (Replaces: 10524602) |
|
Immediately | $ 228.20 | ||||
| 7 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.36 | |||||
| 8 | B8391802 | Bracket, I/m |
|
- | |||||
| 9 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
$ 7.39 | |||||
| 10 | 681390 | Screw (Replaces: M0251015) |
|
$ 12.34 | |||||
| 11 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 9.99 | |||||
| 12 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 13 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 6.57 | ||||
| 14 | WPW10289690 | Cover, Ice Maker (Replaces: 10519801) |
|
$ 7.94 | |||||
| 15 | 10526701 | Clamp, Wire |
|
- | |||||
| 16 | WP67004028 | Arm, I.m. Shut-off (Replaces: D7813101) |
|
Immediately | $ 86.33 | ||||
| 17 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.35 | |||||
| 19 | A1055101 | Spring, Antikink |
|
- | |||||
| 20 | B5720301 | Clip |
|
- | |||||
| 21 | WPD7813010 | Harness, Ice Maker Mod (Replaces: D7813004) |
|
Immediately | $ 66.57 | ||||
| NI | M0102301 | Clamp |
|
- | |||||
| NI | 10527003 | Instructions-installation |
|
- | |||||
| NI | M0311301 | Plug Button |
|
- | |||||
| NI | A3124301 | Plug |
|
- | |||||
| NI | 10549601 | Label, Caution (ice Maker) |
|
- | |||||
| NI | A3036901 | Label Warranty |
|
- | |||||
| NI | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 |
