02 - Frame And Console
03 - Inner Door
04 - Tub Assembly
05 - Pump And Motor

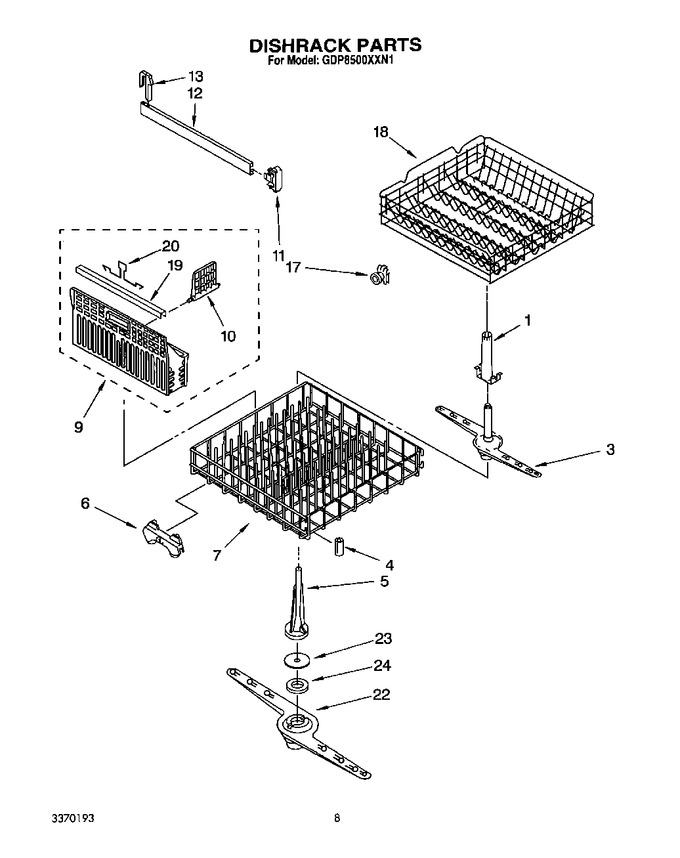

06 - Dishrack
07 - Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 304212 | Support, Arm |
|
- | |||||
| 3 | 304204 | Spray Arm, Upper |
|
$ 67.61 | |||||
| 4 | 304490 | Bumper (2) |
|
- | |||||
| 5 | 304170 | Tower, Pressure |
|
$ 72.38 | |||||
| 6 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 88.82 | |||||
| 7 | W10311986 | Dishrack, Lower (includes Items 4 & 6) (Replaces: 3368516) |
|
Immediately | $ 169.33 | ||||
| 9 | 3369492 | Silverware Basket Assembly |
|
- | |||||
| 10 | 3369489 | Cover, Basket |
|
- | |||||
| 11 | 300845 | End Cap (front Or Rear) |
|
$ 7.63 | |||||
| 12 | 3369071 | Track |
|
- | |||||
| 13 | 3369046 | Stop, Track (2) |
|
- | |||||
| 17 | 3371581 | Wheel And Axle Assembly (4) |
|
- | |||||
| 18 | W11169039 | Dishrack, Upper (Replaces: 3371653) |
|
Immediately | $ 182.83 | ||||
| 19 | 717528 | Trim, Basket |
|
- | |||||
| 20 | 300086 | Handle, Basket |
|
- | |||||
| 22 | 3369347 | Sprayarm, Lower |
|
- | |||||
| 23 | 3367910 | Cap, Nozzle |
|
$ 39.70 | |||||
| 24 | 719576 | Bearing, Nozzle |
|
$ 7.48 | |||||
| 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 43.49 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 4317926 | Avocado |
|
- | ||||||
| 4317927 | Gold |
|
- | ||||||
| 4317929 | Side Panel Kit: (almond) |
|
- | ||||||
| 4317930 | Toast |
|
- | ||||||
| 4317931 | Platinum |
|
- | ||||||
| W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 42.89 | ||||||
| 675677 | Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks) |
|
- | ||||||
| WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 48.29 | |||||
| 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 34.95 | |||||
| WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 41.27 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | ||||||
| LIT3369091 | Instructions, Installation |
|
- | ||||||
| LIT3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | ||||||
| LIT3371237 | Energy Guide |
|
- | ||||||
| LIT3369270 | Guide, Use & Care |
|
- | ||||||
| LIT3370466 | Wiring Diagram |
|
- | ||||||
| LIT3370193 | Parts List |
|
- | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
$ 53.90 | ||||||
| 350942 | Primer (white) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799340 | Black (uncut) |
|
- | ||||||
| 4317925 | Side Panel Kit (white) |
|
- |
