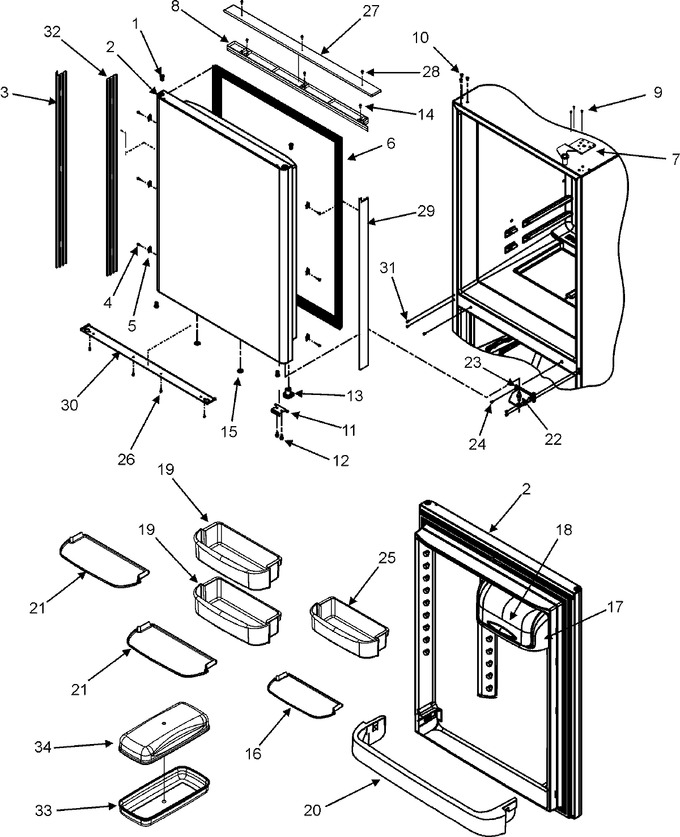

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 19.89 | ||||
| 2 | 67002116 | Door Assy., Ref. Foam (blk) | 10 |
|
- | ||||
| 3 | 67006228 | Trim, Door (lt-stnls) | 10 |
|
$ 147.89 | ||||
| 4 | WP489128 | Screw (Replaces: 67006767) | 10 |
|
$ 10.26 | ||||
| 5 | 67002451 | Clip | 10 |
|
$ 7.97 | ||||
| 6 | W10849442 | Gasket, Ref Door (blk) (Replaces: 67003557) | 10 |
|
$ 325.40 | ||||
| 7 | 12626910ED | Hinge, Top (rt-blk) (Replaces: 67005824) | 10 |
|
$ 112.38 | ||||
| 7 | 67005827 | Hinge, Top (lt-blk) | 10 |
|
- | ||||
| 8 | 12059103 | Extension, Ref Dr (blk) | 10 |
|
- | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.59 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.34 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 13.28 | |||
| 12 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 7.71 | ||||
| 13 | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
$ 81.29 | ||||
| 14 | WP489474 | Screw 1`` (Replaces: M0211021) | 10 |
|
Immediately | $ 7.70 | |||
| 15 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.09 | ||||
| 16 | 67006906 | Gripper (med) | 10 |
|
- | ||||
| 17 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 79.21 | |||
| 18 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 74.40 | |||
| 19 | 67003776 | Bucket, Ref Dr (large) | 10 |
|
- | ||||
| 20 | 67002477 | Retainer, Door | 10 |
|
- | ||||
| 21 | 67007055 | Gripper (large) | 10 |
|
- | ||||
| 22 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 7.90 | ||||
| 23 | 67002960 | Hinge, Center (blk) | 10 |
|
- | ||||
| 24 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 13.25 | ||||
| 25 | WPW10371193 | Bucket, Ref Dr (med) (Replaces: 67003775) | 10 |
|
Immediately | $ 70.97 | |||
| 26 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 7.71 | ||||
| 27 | 67006124 | Trim, Door (top-stnls) | 10 |
|
- | ||||
| 28 | WP3400805 | Screw (Replaces: 67006769) | 10 |
|
$ 6.80 | ||||
| 29 | 67006513 | Trim, Door (rt-stnls) | 10 |
|
$ 134.98 | ||||
| 30 | 67006122 | Trim, Door (btm-stnls) | 10 |
|
- | ||||
| 31 | 67006425 | Screw, Sm (Replaces: 67006400) | 10 |
|
Immediately | $ 6.57 | |||
| 32 | 67007086 | Trim, Door (lt-stnls) | 10 |
|
- | ||||
| 33 | 67004404 | Tray, Butter | 10 |
|
- | ||||
| 34 | 67004405 | Lid, Butter Tray | 10 |
|
- |
