Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

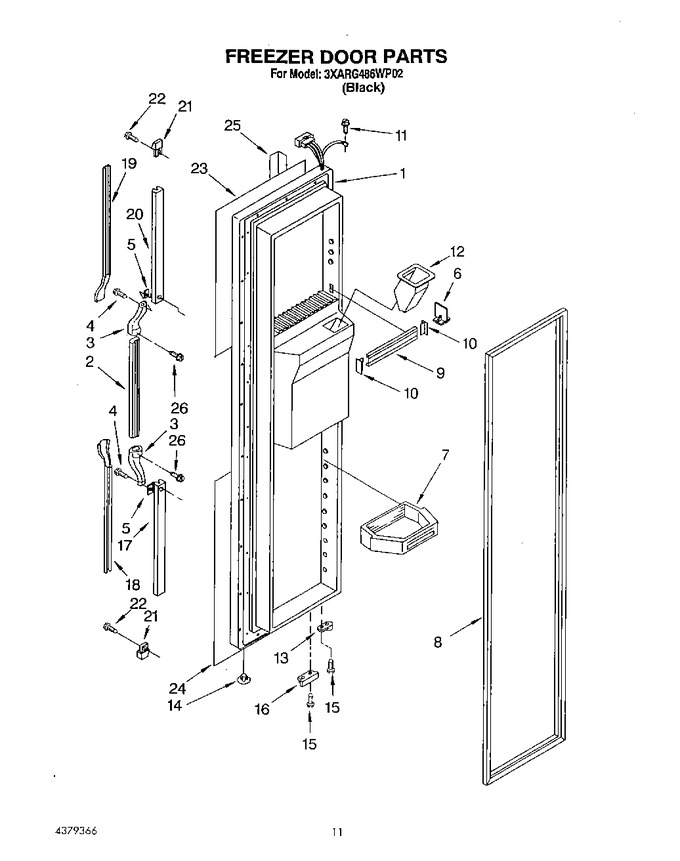

1	2167409		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	1118417		Handle, Center		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WP488163		Screw,   (Replaces: 488725)				$ 7.92
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	1123293		Divider, Shelf		Appelez-nous	-
7	2167411		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	2167391		Trim, Door Shelf		Appelez-nous	-
10	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
11	WP488234		Screw   (Replaces: 489422)				$ 7.08
12	2156145		Chute, Ice		Appelez-nous	-
13	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
14	2151653		Hole Plug		Appelez-nous	-
15	WP999367		Screw   (Replaces: 489367)				$ 8.56
16	2155329		Bracket, Door Stop		Appelez-nous	-
17	1119360		Retainer, Insert		Appelez-nous	-
18	1118437		Insert, Handle		Appelez-nous	-
19	1118435		Insert, Handle		Appelez-nous	-
20	1119372		Retainer, Insert		Appelez-nous	-
21	2156220		End Cap (2)		Appelez-nous	-
22	489090		Screw		Appelez-nous	-
23	1124648		Panel Upper, Black Glass		Appelez-nous	-
24	1124649		Panel, Black Glass (lower)		Appelez-nous	-
25	1119062		Door Trim		Appelez-nous	-
26	489022		Screw		Appelez-nous	-
