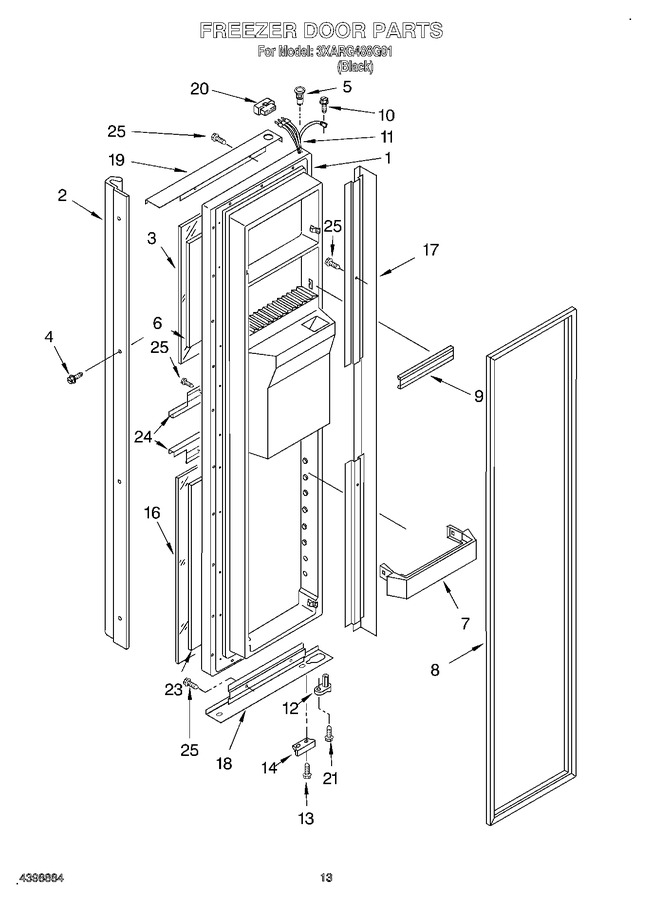

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204299S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2203820S		Handle		Appelez-nous	-
3	2203284B		Panel, Upper (black)		Appelez-nous	-
4	3400897		Screw		Appelez-nous	-
5	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
6	2208277		Filler, Panel (upper)		Appelez-nous	-
7	WP2171157		Shelf Bin (4)   (Replaces: 2171157)				$ 63.70
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2183713		Dispenser Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2155331		Bracket, Door Stop		Appelez-nous	-
16	2203286B		Panel, Lower (black)		Appelez-nous	-
17	2186766S		Trim, Door (hinge Side)		Appelez-nous	-
18	2203369S		Trim, Door (bottom)		Appelez-nous	-
19	2203375S		Trim, Door Top		Appelez-nous	-
20	2169477		Connector		Appelez-nous	-
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
23	2208278		Filler, Panel (lower)		Appelez-nous	-
24	2186778S		Trim, Dispenser		Appelez-nous	-
25	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
