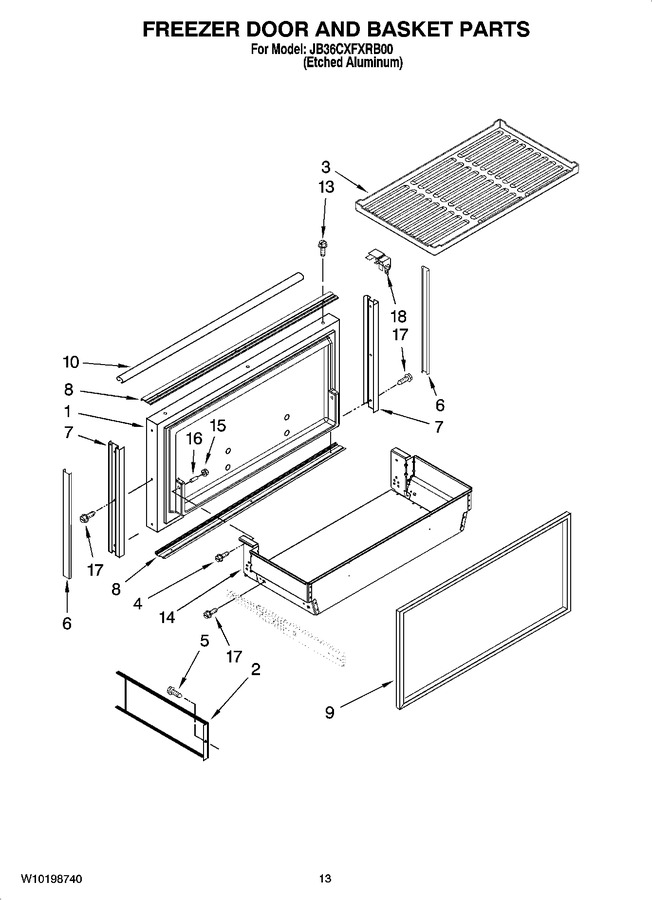

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2327401 | Freezer Door Panel (includes Item 9) |
|
- | |||||
| 2 | 2317101 | Divider, Basket (2) |
|
- | |||||
| 3 | W10168937 | Mat, Basket |
|
- | |||||
| 4 | W10135775 | Screw |
|
$ 13.44 | |||||
| 5 | WP488234 | Screw (Replaces: W10135792) |
|
$ 6.37 | |||||
| 6 | 2006324 | Cover, Trim (sides) |
|
$ 27.20 | |||||
| 7 | 2309477 | Trim-door, Side |
|
$ 198.50 | |||||
| 8 | 2309478 | Trim-door (top & Bottom) |
|
$ 168.48 | |||||
| 9 | 2302710 | Door Gasket, Magnetic (Replaces: 2300185) |
|
$ 277.10 | |||||
| 10 | 2006329 | Cover-trim, Top |
|
$ 86.37 | |||||
| 13 | WP8281250 | Screw (Replaces: 8281250) |
|
$ 10.28 | |||||
| 14 | W10258182 | Basket Assembly, Freezer (Replaces: 2327533) |
|
$ 228.96 | |||||
| 15 | WP2207454 | Nut, Hex (Replaces: 2207454) |
|
$ 10.24 | |||||
| 16 | W10001190 | Washer |
|
$ 7.92 | |||||
| 17 | W10109030 | Screw, 10-24 X 1/4 (basket To Slide) |
|
$ 13.82 | |||||
| 18 | 2207457 | Trim, Corner (4) |
|
$ 51.41 |
