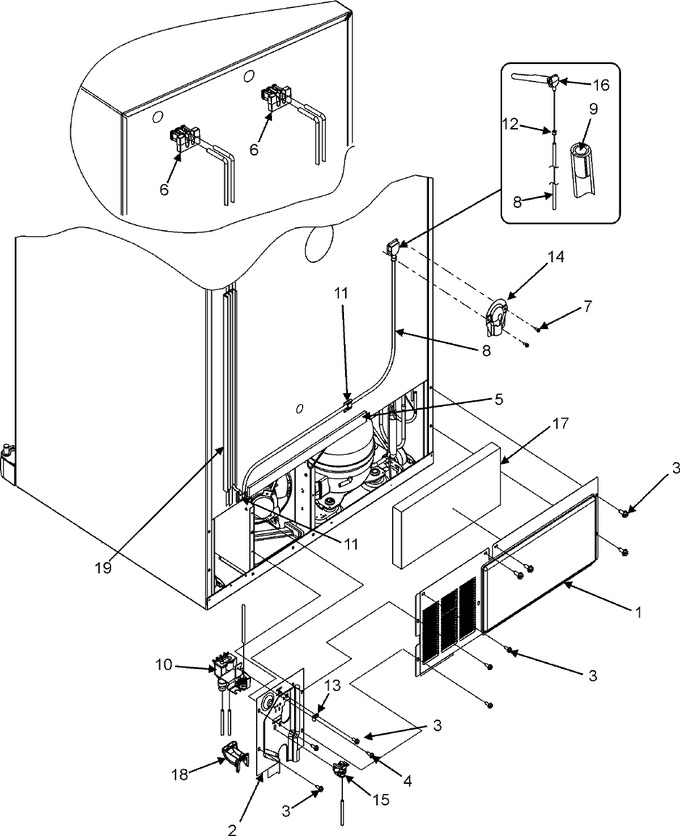

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evaporator Area & Rollers


06 - Freezer Door


07 - Freezer Shelves


08 - Ice Maker


09 - Interior Cabinet


10 - Pantry Assembly


11 - Refrigerator Door


12 - Refrigerator Shelves


13 - Supplemental Information


14 - Water Dispenser/filter/tank/vent Cover


15 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12575101ED		Back, Mach Comp	10	Appelez-nous	-
2	67004611		Cover, Water Valve	10	Appelez-nous	-
3	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
4	681390		Screw   (Replaces: M0251015)	10			$ 13.71
5	B5759649		Gasket, Mc Back	10	Appelez-nous	-
6	67004092		Block, Filter	10	Appelez-nous	-
7	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.57
8	WPB5705307		Tube, Plastic   (Replaces: 67003729)	10			$ 13.05
9	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)	10			$ 8.21
10	WP67005154		Valve, Dual Water   (Replaces: 67005154)	10		Immediately	$ 111.69
11	WPM0104106		Clip   (Replaces: M0104106)	10			$ 8.17
12	WPM0114003		Clip, Speed   (Replaces: M0114003)	10			$ 11.60
13	W10833902		Clamp, Tube   (Replaces: M0108105)	10			$ 11.54
14	12726003		Cover, Water Line   (Replaces: 67003331)	10			$ 19.19
15	67004701		Clip, Waterline	10			$ 18.96
16	W11176463		Elbow, Fill Tube   (Replaces: 10463201)	10		Immediately	$ 119.86
17	67003796		Fiber, Acoustic	10			$ 19.27
18	12831101		Sweep, Dual Tube   (Replaces: 67004101)	10			$ 13.03
19	67004102		Track, Waterline	10			$ 31.99
20	M0104102		Clip, Cord	10			$ 8.10
21	WP67006506		Cord, Power   (Replaces: 12583301)	10			$ 27.74
