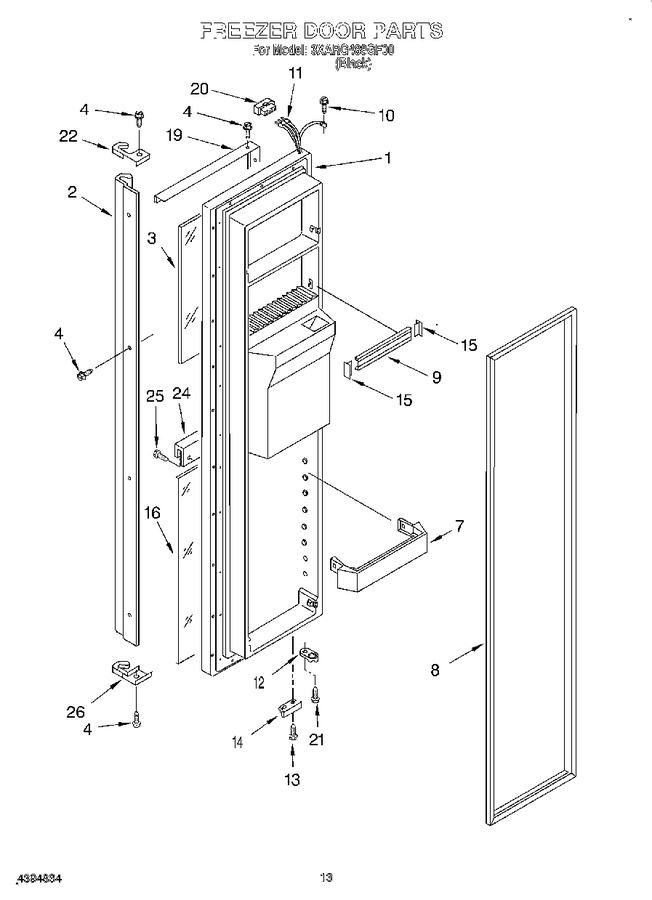

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197756		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194948		Handle		Appelez-nous	-
3	1126016		Panel Upper, Black Glass		Appelez-nous	-
4	489481		Screw		Appelez-nous	-
7	WP2171157		Shelf Bin (4)   (Replaces: 2171157)				$ 63.70
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2183713		Dispenser Harness		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2155331		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
16	1126017		Panel Lower Black Glass		Appelez-nous	-
19	2194952		Trim, Door		Appelez-nous	-
20	2169477		Connector		Appelez-nous	-
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
22	2198099		Cover, End Cap		Appelez-nous	-
24	2194945		Dispenser		Appelez-nous	-
25	489374		Screw		Appelez-nous	-
26	2198101		End Cap		Appelez-nous	-
