Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2197937B Refrigerator Door (includes No.7) Appelez-nous -
2 2195496 Load, Lock (3) Appelez-nous -
3 WP2256101 Door, Compartment   (Replaces: 2177105) In-Stock Immediately $ 89.42

4 2173643 Retainer, Bottle Appelez-nous -
5 2165792 Tray, Butter Appelez-nous -
6 2194948 Handle Appelez-nous -
7 2159083 Door Gasket, Magnetic (service) Special Order $ 332.76

8 2198101 End Cap Appelez-nous -
9 489481 Screw Appelez-nous -
10 1126015 Black Glass Appelez-nous -
11 2198099 End Cap Appelez-nous -
12 WP2182181 Thimble, Top   (Replaces: 2182180) Special Order $ 8.15

14 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

15 2155331 Bracket, Door Stop Appelez-nous -
16 2194951 Trim, Door Appelez-nous -
18 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 7.20

19 2179608 Shelf Bin (4) Appelez-nous -
20 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26


    View Diagram in Separate Window     Print Icon   Print Part List

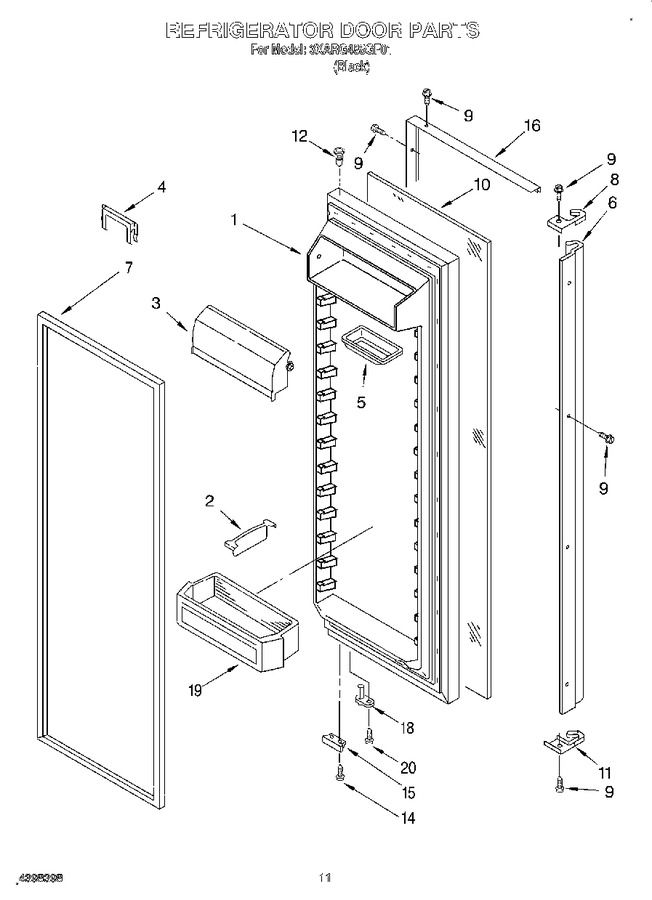

Diagram for 3XARG488GF01
