SELECT A DIAGRAM

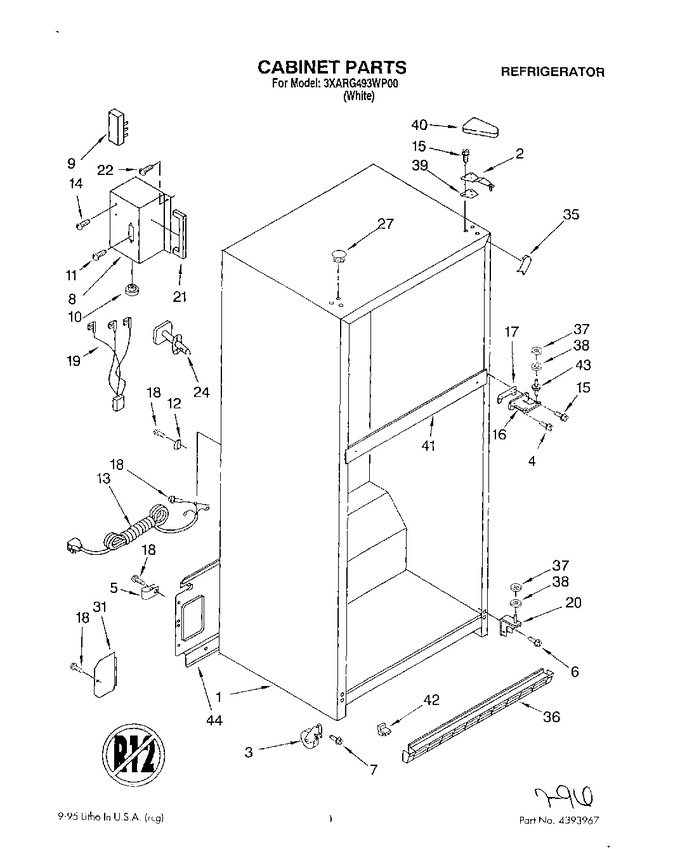

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174690		Hinge (top)		Appelez-nous	-
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	489426		Screw		Appelez-nous	-
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	489459		Screw		Appelez-nous	-
7	2174650		Screw		Appelez-nous	-
8	2158579		Enclosure, Terminal Block		Appelez-nous	-
9	1129346		Terminal Block		Appelez-nous	-
10	1129449		Bushing		Appelez-nous	-
11	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
12	489348		Clamp-nylon		Appelez-nous	-
13	1129332		Service Cord		Appelez-nous	-
14	00489346		Screw   (Replaces: 489346)				$ 380.15
15	WP999367		Screw   (Replaces: 489423)				$ 8.56
16	2183066		Hinge, Center		Appelez-nous	-
17	2163757		Shim, Hinge Center		Appelez-nous	-
18	WP489463		Screw   (Replaces: 489463)				$ 8.25
19	2166651		Wire Assembly, Terminal Box		Appelez-nous	-
20	2179810		Hinge Butt		Appelez-nous	-
21	2167227		Gasket		Appelez-nous	-
22	WP250830		Screw   (Replaces: 489048)				$ 8.78
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
27	WP2151652		Hole Plug (6)   (Replaces: 2151652)				$ 22.87
31	2166251		Cover, Water Valve				$ 6.43
35	WPW10283959		Corner Filler (2)   (Replaces: 2163733)				$ 8.21
36	2182429		Grille		Appelez-nous	-
37	WP489467		Washer, Plain   (Replaces: 489467)			Immediately	$ 11.42
38	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 10.74
39	2176201		Shim		Appelez-nous	-
40	2172613		Cover-hinge		Appelez-nous	-
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
42	2166156		Corner Filler, Grille		Appelez-nous	-
43	WP2254618		Pin, Hinge   (Replaces: 2183063)			Immediately	$ 92.02
44	2183158		Cover, Unit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
