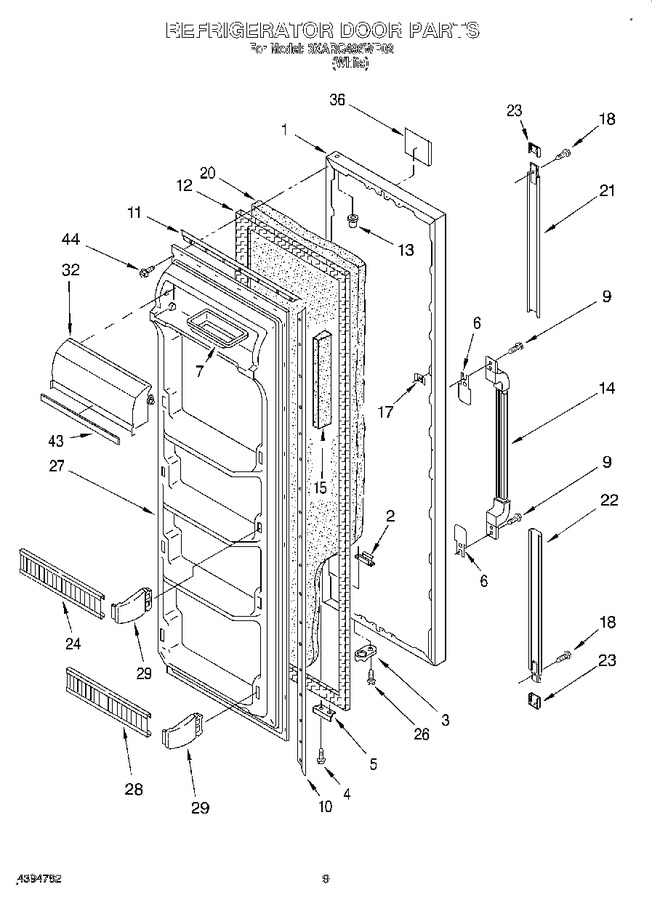

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194995W		Refrigerator Door Panel (also Order Item 20)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
4	WP999367		Screw   (Replaces: 489367)				$ 8.56
5	2195950		Bracket, Door Stop				$ 5.84
6	2179399		Shim		Appelez-nous	-
7	2165792		Tray, Butter		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2194759W		Handle, Center		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	2194764W		Extension, Top		Appelez-nous	-
22	2194766W		Extension, Bottom		Appelez-nous	-
23	2174006		Cover, End Cap		Appelez-nous	-
24	WP2182189		Trim, Door Shelf (2)   (Replaces: 2182189)				$ 100.56
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2182190		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2196189		End Cap (right Side (4))   (Replaces: 2182123)				$ 14.06
29	WP2196190		End Cap (left Side (4))   (Replaces: 2182122)				$ 14.54
32	2148289		Compartment Door		Appelez-nous	-
36	2195061		Nameplate		Appelez-nous	-
43	2162896		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
