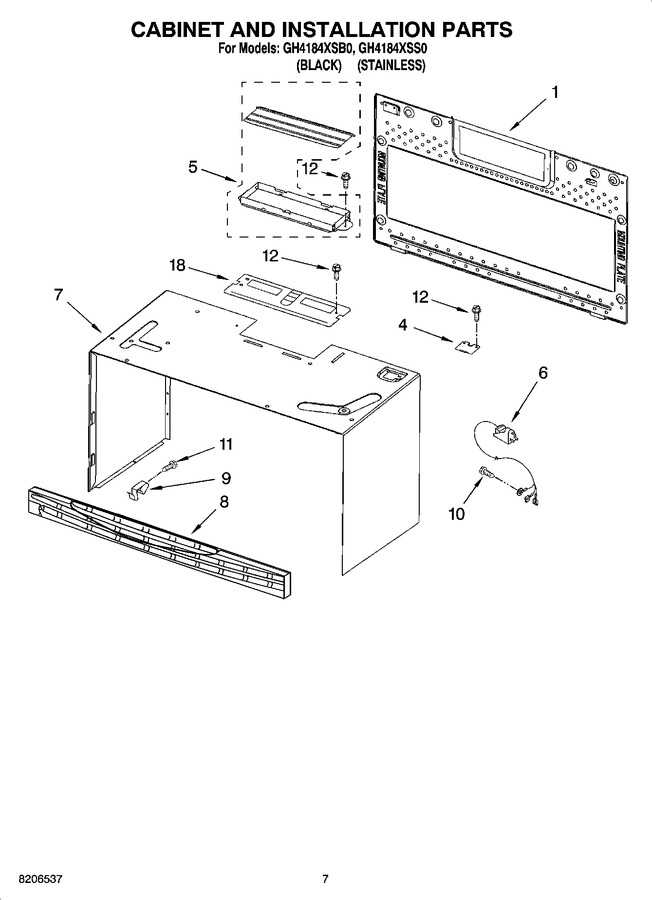

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206172 | Plate, Mounting |
|
- | |||||
| 4 | 8184897 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 76.13 | ||||
| 6 | W10708076 | Cord, Power (Replaces: 8205808) |
|
$ 19.40 | |||||
| 7 | 8205348 | Case, Outer |
|
- | |||||
| 8 | W10450187 | Grille, Vent (black) (Replaces: 8205215) |
|
Immediately | $ 73.46 | ||||
| 8 | 8205217 | Grille, Vent (stainless) |
|
- | |||||
| 9 | W10615742 | Clip, Grille (Replaces: 8184190) |
|
$ 7.75 | |||||
| 10 | 4393836 | Screw |
|
- | |||||
| 11 | 8169475 | Screw |
|
$ 6.64 | |||||
| 12 | 4393472 | Screw |
|
- | |||||
| 18 | 8205693 | H.v. Wire Assembly |
|
- | |||||
| 18 | W10539840 | Ground Wire (Replaces: 8205696) |
|
$ 22.57 | |||||
| 18 | 8206452 | Plate, Damper |
|
- | |||||
| 18 | 8205948 | Installation, Hardware |
|
$ 24.21 | |||||
| 18 | 8184731 | Template, Upper |
|
- | |||||
| 18 | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 12.02 |
