SELECT A DIAGRAM

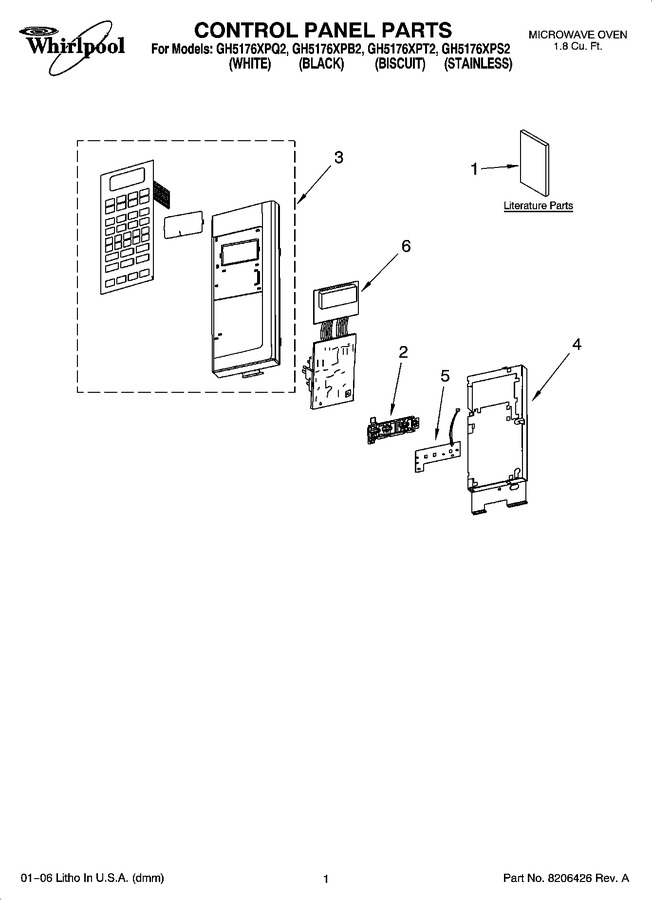

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8204923		U & C Guide		Appelez-nous	-
1	8204761		Tech Sheet		Appelez-nous	-
1	8205139		Instructn, Install		Appelez-nous	-
1	8185470		Cook Guide Label		Appelez-nous	-
2	8184110		Button, Control (white)		Appelez-nous	-
2	8184183		Button, Control (black/stainless)		Appelez-nous	-
2	8184182		Button, Control (biscuit)		Appelez-nous	-
3	8205311		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
3	8205312		Panel Asy, Control Includes Lens And Membrane Switch (stainless)		Appelez-nous	-
3	8205314		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
3	8205313		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)		Appelez-nous	-
4	8204997		Bracket, Control		Appelez-nous	-
5	8205078		Keyboard Assy		Appelez-nous	-
6	8204825		Microcomputer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
