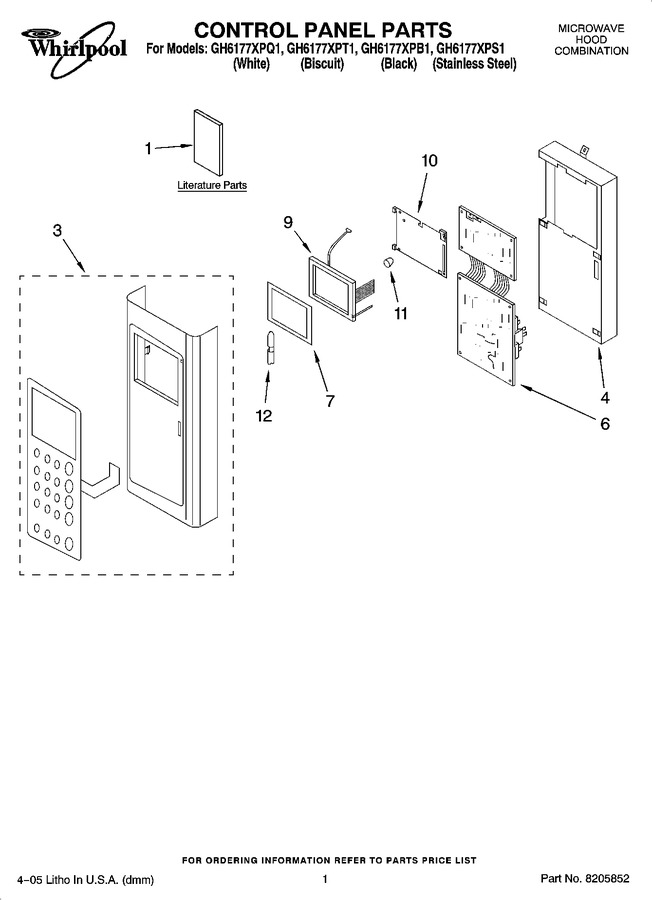

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8204711 | Cook Book |
|
- | |||||
| 1 | 8205610 | Tech Sheet |
|
- | |||||
| 1 | 8184059 | Installation Instructions |
|
- | |||||
| 1 | 8184891 | Cook Guide Label |
|
- | |||||
| 1 | 8204924 | Use & Care Guide |
|
- | |||||
| 3 | 8205235 | Control Panel Assembly (stainless Steel) |
|
$ 0.01 | |||||
| 3 | 8205233 | Control Panel Assembly (black) |
|
- | |||||
| 3 | 8205232 | Control Panel Assembly (white) |
|
- | |||||
| 3 | 8205234 | Control Panel Assembly (biscuit) |
|
- | |||||
| 4 | 8205238 | Bracket, Control |
|
- | |||||
| 6 | 8205237 | Microcomputer |
|
- | |||||
| 7 | 8184913 | Ring, Rubber |
|
- | |||||
| 9 | 8184914 | Lcd Assembly |
|
- | |||||
| 10 | 8184915 | Bracket, Lcd |
|
- | |||||
| 11 | 8185058 | Bushing, Rubber |
|
- | |||||
| 12 | 8205236 | Sensor, Light Lens |
|
- |
