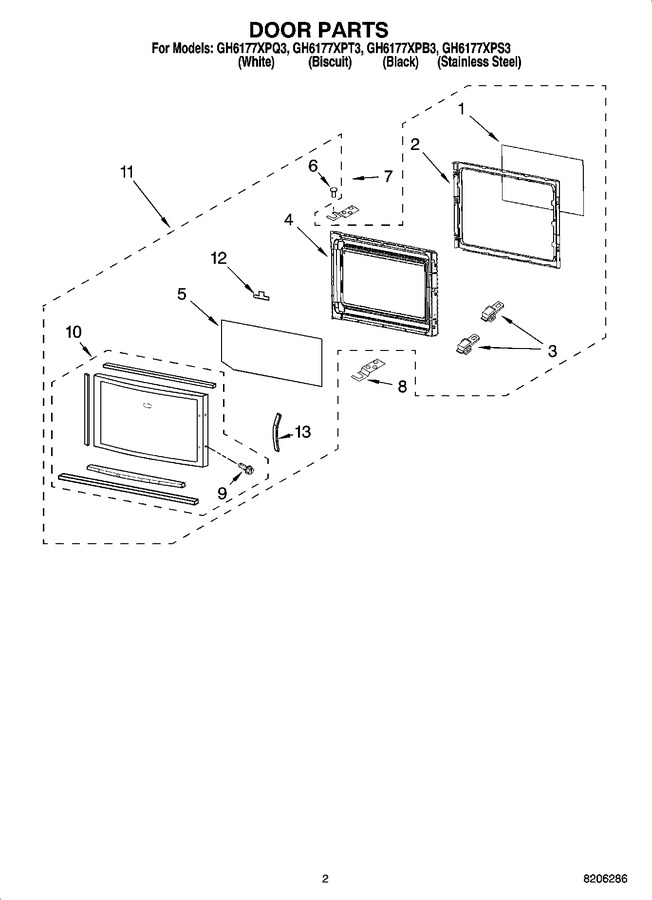

02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8204680 | Frame, Inner |
|
- | |||||
| 3 | 8184113 | Latch, Door |
|
- | |||||
| 4 | 8185038 | Body Asy, Door Includes 1 (black) |
|
- | |||||
| 4 | 8185035 | Body Asy, Door Includes 1 (white) |
|
- | |||||
| 4 | 8185037 | Body Asy, Door Includes 1 (biscuit) |
|
- | |||||
| 5 | 8205219 | Glass, Outer |
|
- | |||||
| 6 | 8184922 | Pivot, Door |
|
- | |||||
| 7 | 8204679 | Hinge, Upper |
|
- | |||||
| 8 | 8204678 | Hinge, Lower |
|
- | |||||
| 9 | 8169479 | Screw |
|
$ 7.30 | |||||
| 10 | 8205221 | Frame Asy, Outer (black) |
|
- | |||||
| 10 | 8205220 | Frame Asy, Outer (white) |
|
- | |||||
| 10 | 8205222 | Frame Asy, Outer (biscuit) |
|
- | |||||
| 10 | 8205223 | Frame Asy, Outer (stainless Steel) |
|
- | |||||
| 11 | 8205228 | Complete Door (white) |
|
- | |||||
| 11 | 8205231 | Complete Door (stainless Steel) |
|
- | |||||
| 11 | 8205230 | Complete Door (biscuit) |
|
- | |||||
| 11 | 8205229 | Complete Door (black) |
|
- | |||||
| 12 | 8205218 | Bracket, Door Glass |
|
- | |||||
| 13 | 8205224 | Handle (white) |
|
- | |||||
| 13 | 8205227 | Handle (stainless Steel) |
|
- | |||||
| 13 | W10246505 | Handle (black) (Replaces: 8205226) |
|
$ 201.06 | |||||
| 13 | 8205225 | Handle (biscuit) |
|
- |
