| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

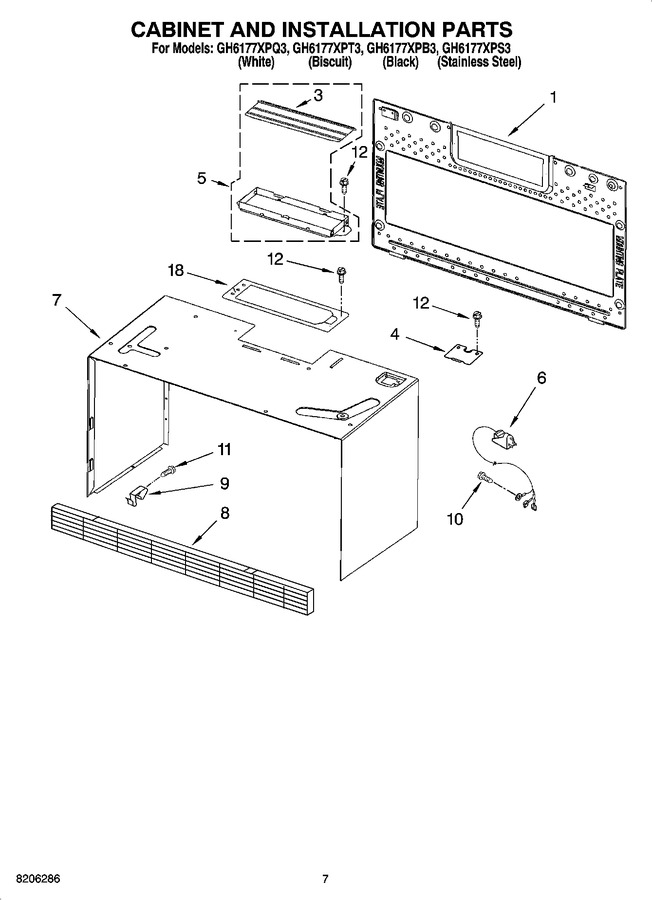

| 1 | 8206173 | Plate, Mounting |
|
- | |||||
| 3 | W10843943 | Door, Damper (Replaces: 4393713) |
|
Immediately | $ 84.59 | ||||
| 4 | 8184897 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Damper Assembly (Replaces: 8205772) |
|
Immediately | $ 84.59 | ||||
| 6 | 8184898 | Cord, Power |
|
- | |||||
| 7 | 8205207 | Case, Outer (white) |
|
- | |||||
| 7 | 8205213 | Case, Outer (biscuit) |
|
- | |||||
| 7 | 8205212 | Case, Outer (black) |
|
- | |||||
| 8 | W10450187 | Grille, Vent (black) (Replaces: 8205215) |
|
Immediately | $ 81.62 | ||||
| 8 | 8205217 | Grille, Vent (stainless Steel) |
|
- | |||||
| 8 | 8205216 | Grille, Vent (biscuit) |
|
- | |||||
| 8 | W10450172 | Grille, Vent (white) (Replaces: 8205214) |
|
$ 81.62 | |||||
| 9 | W10615742 | Clip, Grille (Replaces: 8184190) |
|
$ 8.61 | |||||
| 10 | 4393836 | Screw |
|
- | |||||
| 11 | 8169475 | Screw |
|
$ 6.64 | |||||
| 12 | 4393472 | Screw |
|
- | |||||
| 18 | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| 18 | 8184902 | Plate, Damper |
|
- | |||||
| 18 | N/A | Miscellaneous |
|
- | |||||
| 18 | 8184603 | Wire Harness (includes Light Sockets) |
|
- | |||||
| 18 | 8205947 | Installation, Hardware |
|
$ 88.07 | |||||
| 18 | 8184781 | Template, Upper |
|
- |
