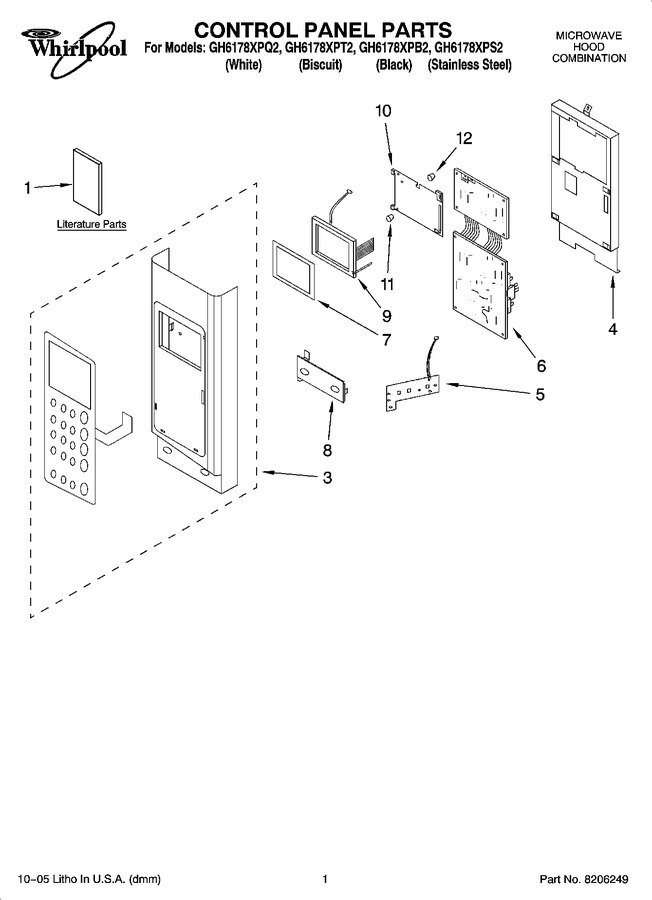

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8204711 | Cook Book |
|
- | |||||
| 1 | 8205620 | Tech Sheet |
|
- | |||||
| 1 | 8205139 | Installation Instructions |
|
- | |||||
| 1 | 8184891 | Cook Guide Label |
|
- | |||||
| 1 | 8204914 | Use & Care Guide |
|
- | |||||
| 3 | 8205258 | Control Panel Assembly (stainless Steel) |
|
- | |||||
| 3 | 8205260 | Control Panel Assembly (black) |
|
- | |||||
| 3 | 8205257 | Control Panel Assembly (white) |
|
- | |||||
| 3 | 8205259 | Control Panel Assembly (biscuit) |
|
- | |||||
| 4 | 8185057 | Bracket, Control |
|
- | |||||
| 5 | 8205077 | Keyboard Assy. |
|
- | |||||
| 6 | 8205261 | Microcomputer |
|
- | |||||
| 7 | 8184913 | Ring, Rubber |
|
- | |||||
| 8 | 8184182 | Button, Control (biscuit) |
|
- | |||||
| 8 | 8184183 | Button, Control (black) |
|
- | |||||
| 8 | 8184110 | Button, Control (white) |
|
- | |||||
| 9 | 8204689 | Lcd Assembly |
|
- | |||||
| 10 | 8184915 | Bracket, Lcd |
|
- | |||||
| 11 | 8185058 | Bushing, Rubber |
|
- | |||||
| 12 | 8184919 | Sensor, Light Lens |
|
- |
