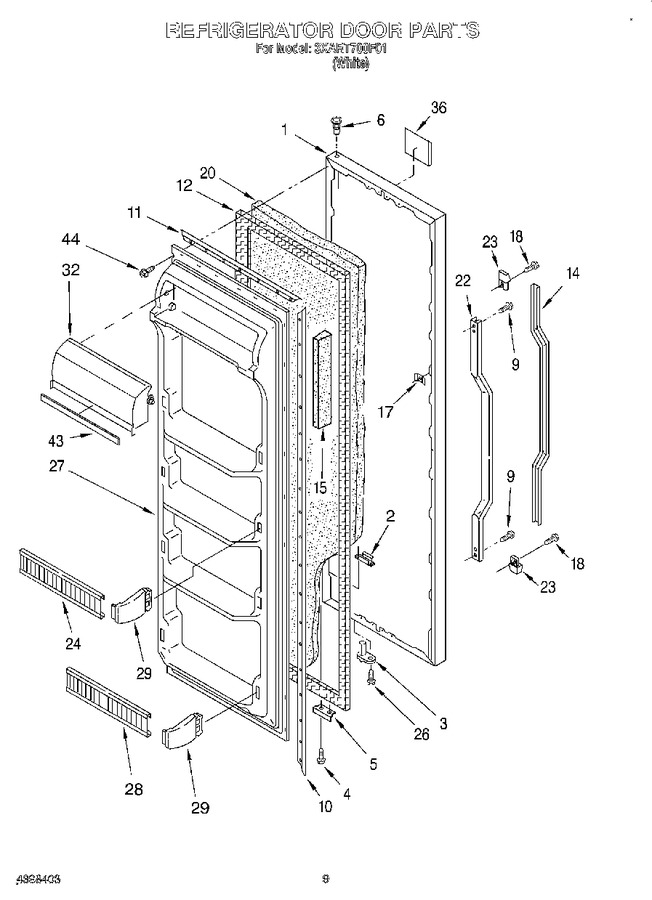

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194612W		Refrigerator Door Panel		Appelez-nous	-
2	2196135		Tap, Plate				$ 18.96
3	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
4	WP999367		Screw   (Replaces: 489367)				$ 8.56
5	2195950		Bracket, Door Stop				$ 5.84
6	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
14	2187033		Insert, Handle		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
20	876029		Foam Insulation		Appelez-nous	-
22	2187031		Retainer, Insert		Appelez-nous	-
23	2194778W		Endcap		Appelez-nous	-
24	WP2182189		Trim, Door Shelf (2)   (Replaces: 2182189)				$ 100.56
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
27	2196137		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2182190		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2196189		End Cap (right Side (4))   (Replaces: 2196189)				$ 14.06
29	WP2196190		End Cap (left Side (4))   (Replaces: 2196190)				$ 14.54
32	2148289		Compartment Door		Appelez-nous	-
36	2195061		Nameplate		Appelez-nous	-
43	2188148		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40
