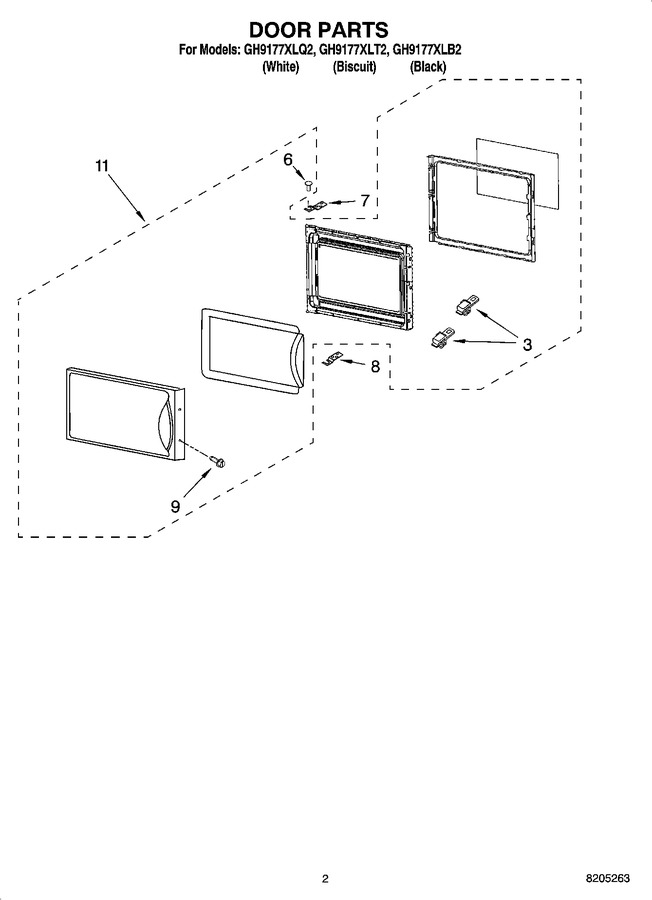

02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 8184113 | Latch, Door |
|
- | |||||
| 6 | 8184922 | Pivot, Door |
|
- | |||||
| 7 | 8204679 | Hinge, Upper |
|
- | |||||
| 8 | 8204678 | Hinge, Lower |
|
- | |||||
| 9 | 8169479 | Screw |
|
$ 7.30 | |||||
| 11 | 8185077 | Complete Door (white) |
|
- | |||||
| 11 | 8185079 | Complete Door (biscuit) |
|
- | |||||
| 11 | 8185078 | Complete Door (black) |
|
- |
