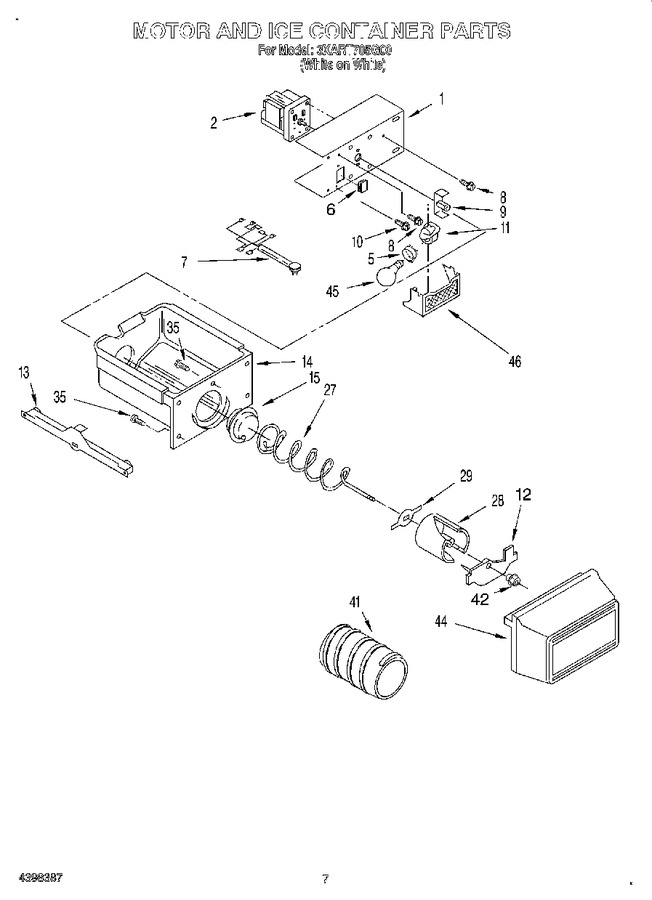

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10284487 | Bracket, Motor (Replaces: 2183728) |
|
$ 119.81 | |||||
| 2 | 2167014 | Motor, Dispenser |
|
- | |||||
| 5 | WP2175210 | Shroud, Light (Replaces: 2169193) |
|
$ 86.74 | |||||
| 6 | 2195013 | Plug, Bracket |
|
- | |||||
| 7 | 2186816 | Wiring Assembly, Ice Dispenser |
|
- | |||||
| 8 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 9 | WPW10169511 | Coupling, Motor (Replaces: 983663) |
|
$ 24.51 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 12 | 2181722 | Baffle |
|
$ 22.61 | |||||
| 13 | W10845585 | Slide, Container (left Side) (Replaces: 1119237) |
|
$ 139.41 | |||||
| 13 | W10845583 | Slide, Container (right Side) (Replaces: 1119293) |
|
$ 130.12 | |||||
| 14 | WP2196090 | Ice Container (Replaces: 2196090) |
|
$ 214.84 | |||||
| 15 | W10749708 | Coupling, Conveyor (Replaces: 983668) |
|
$ 27.44 | |||||
| 27 | 2181954 | Conveyor |
|
- | |||||
| 28 | 4388736 | Drum (Replaces: 946193) |
|
$ 96.97 | |||||
| 29 | 4388736 | Drive Bar (Replaces: 946192) |
|
$ 96.97 | |||||
| 35 | WP488787 | Screw (Replaces: 488886) |
|
$ 11.26 | |||||
| 41 | 4317870 | Sleeve (Replaces: 2152021) |
|
$ 136.02 | |||||
| 42 | 946195 | Nut, Bearing |
|
- | |||||
| 44 | 2174351 | Front Cover Ice Container |
|
- | |||||
| 45 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 46 | WP2171706 | Light Lens, Dispenser (Replaces: 2171706) |
|
$ 95.91 |
