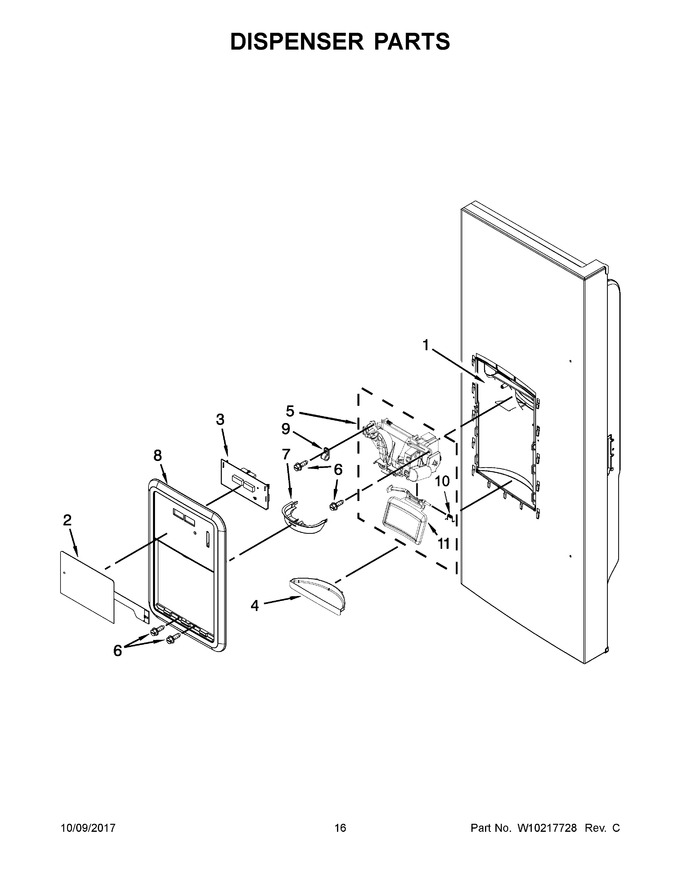

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10882877		Dispenser Keyboard (white)   (Replaces: W10159729)				$ 522.75
3	W10162500		Board, Display				$ 194.39
4	W10141657		Sump, Dispenser (white)				$ 39.70
5	WP13005704W		Chute, Ext/yoke (includes Switch) (white)   (Replaces: 13005704W)				$ 327.08
6	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
7	67006295		Ring, Target				$ 55.57
8	W10141655		Facade, Dispenser (white)				$ 102.85
9	M0108106		Clamp, Tube				$ 69.95
10	WP12565502		Spring, Chute Door   (Replaces: 12565502)				$ 8.43
11	W10146247		Yoke/pad Assembly (white)				$ 39.56
11A	WPW10168729		Yoke/pad Assembly (black)   (Replaces: W10168729)				$ 15.44
11B	WPW10185234		Yoke/pad Assembly (apollo Grey (light))   (Replaces: W10168730)				$ 8.84
11C	WPW10185234		Yoke/pad Assembly (grey)   (Replaces: W10185234)				$ 8.84
2A	W10860143		Dispenser Keyboard (black)   (Replaces: W10164139)		Appelez-nous	-
2B	W10882878		Dispenser Keyboard (satina)   (Replaces: W10168686)				$ 409.61
2C	W10740218		Dispenser Keyboard (stainless)   (Replaces: W10164138)				$ 270.41
4A	W10168726		Sump, Dispenser (black)				$ 37.28
4B	W10168728		Sump, Dispenser (apollo Grey (light))				$ 27.33
4C	W11676505		Sump, Dispenser (grey)   (Replaces: W10185236)				$ 16.52
5A	WP13005704B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005704B)				$ 329.32
5B	WP13005706		Chute, Ext/yoke (includes Switch) (grey)   (Replaces: 13005706)				$ 327.08
8A	W10163996		Facade, Dispenser (black)		Appelez-nous	-
8B	WPW10310690		Facade, Dispenser (apollo Grey( With Stainless Insert))   (Replaces: W10141656)				$ 235.26
8C	W10168725		Facade, Dispenser (apollo Grey (with Satina Insert))				$ 0.01
