SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Freezer Liner


04 - Motor And Ice Container


05 - Refrigerator Door

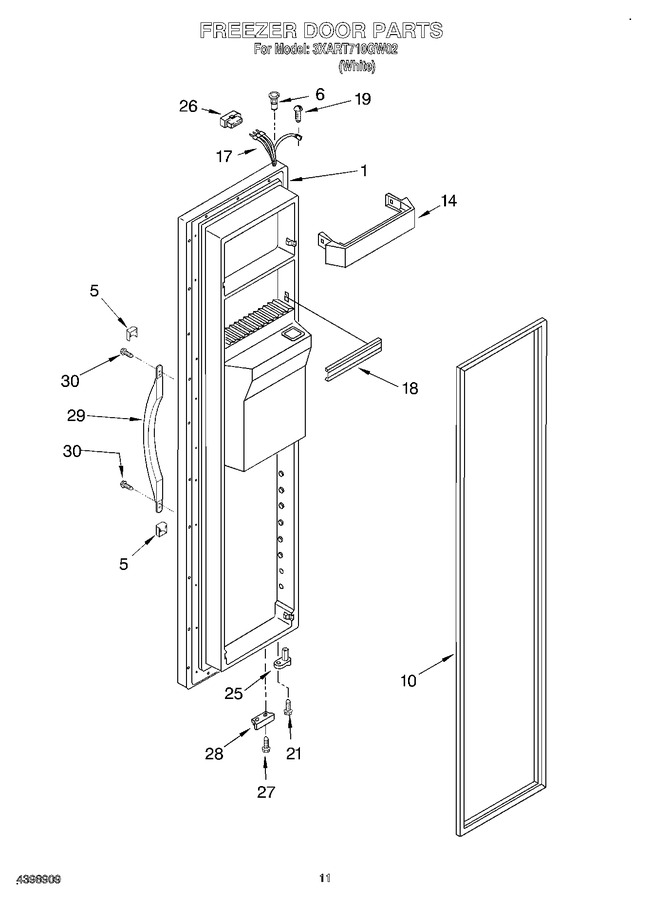

06 - Freezer Door


07 - Dispenser Front


08 - Air Flow


09 - Control


10 - Unit


11 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214408W		Freezer Door		Appelez-nous	-
5	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 8.52
6	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
10	2159072		Door Gasket, Magnetic (service)				$ 323.60
14	WP2156021		Trivet, Shelf (4)   (Replaces: 2204070)				$ 66.43
17	2198273		Harness, Door		Appelez-nous	-
18	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
25	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
26	WP2154473		Housing Connector   (Replaces: 2162412)				$ 24.83
27	WP489483		Screw   (Replaces: 489420)				$ 11.41
28	2195950		Bracket, Door Stop				$ 5.84
29	2186649W		Handle, Center				$ 70.49
30	WP489491		Screw   (Replaces: 489491)				$ 7.30

    View Diagram in Separate Window       Print Part List
