SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet, Door And Liner Parts

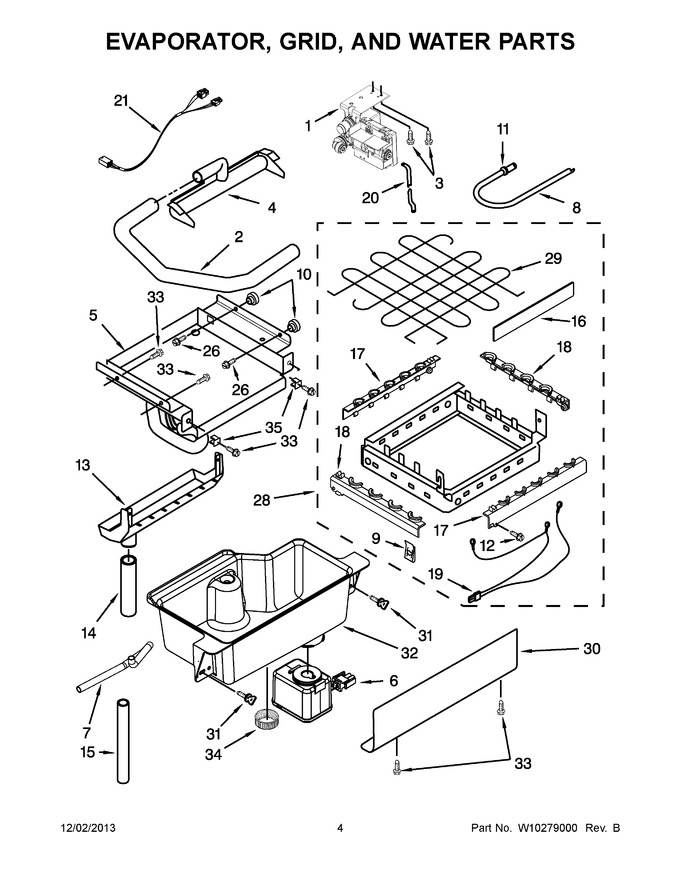

03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10585391		Valve, Water   (Replaces: W10163596)				$ 298.27
2	W10863947		Tube, Plastic   (Replaces: 2217286)				$ 78.70
3	WP488163		Screw   (Replaces: 488208)				$ 7.13
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 78.70
5	WPW10218037		Evaporator   (Replaces: W10218037)				$ 503.87
6	W11566407		Pump, Drain   (Replaces: 2313705)			Immediately	$ 127.24
7	2313851		Tube, Reservoir Pump				$ 46.00
8	W10823511		Tube, Water Fill   (Replaces: 2172593)			Immediately	$ 29.17
9	488660		Nut, ``u``		Appelez-nous	-
10	836667		Spacer		Appelez-nous	-
11	2208539		Nut, Push On				$ 8.31
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 7.50
13	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 169.51
14	WP2185626		Tube   (Replaces: 2185626)				$ 99.74
15	WP2313890		Hose, Overflow   (Replaces: 2313890)				$ 71.88
16	2313604		Guide, Ice		Appelez-nous	-
17	2313603		Bracket, Front And Rear Grid		Appelez-nous	-
18	8201791		Bracket, Side Grid   (Replaces: 2313602)				$ 25.34
19	2185681		Harness, Grid   (Replaces: W10218014)				$ 124.11
20	W10163584		Tube, Inlet		Appelez-nous	-
21	WP2310169		Assembly, Smart Valve Wire   (Replaces: 2310169)				$ 117.72
26	3400886		Screw (stainless)				$ 5.65
28	WP2313637		Assembly, Grid   (Replaces: W10218012)				$ 345.86
29	4387020		Wire, Grid Cutter   (Replaces: 2174754)				$ 95.59
30	2185570		Cover, Grid				$ 95.29
31	8281228		Thumbscrew		Appelez-nous	-
32	WP2324334		Reservoir, Water   (Replaces: 2324334)				$ 183.51
33	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 7.29
34	WP2185696		Cap, Drain   (Replaces: 2185696)				$ 24.79
35	WP3400909		Grommet, Screw   (Replaces: 3400909)				$ 7.15

    View Diagram in Separate Window       Print Part List
