SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Air Flow


09 - Control


10 - Unit


11 - Ice Maker, Lit/optional

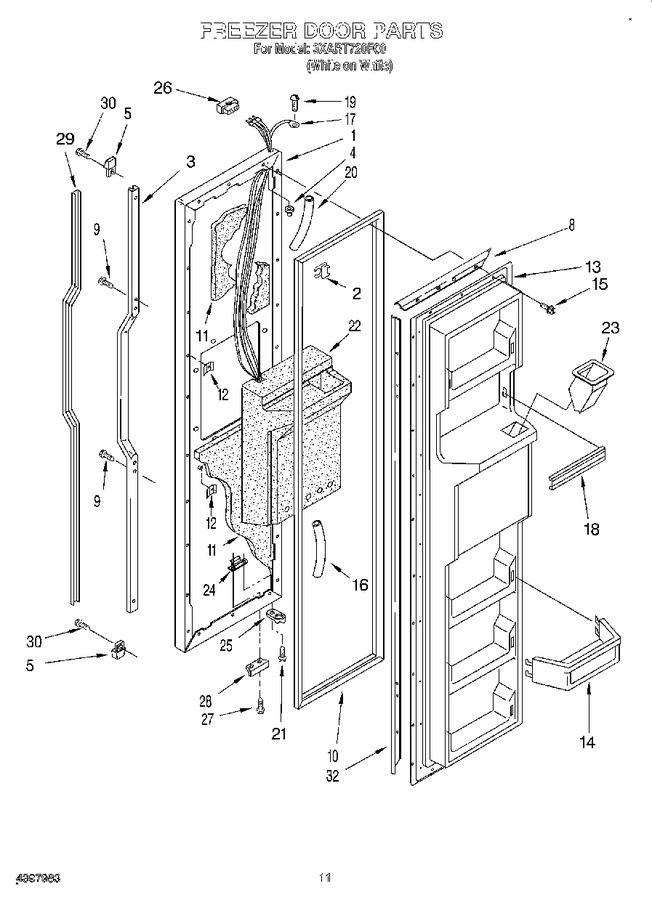

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194998W		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
2	2198369		Clip		Appelez-nous	-
3	2194776W		Retainer, Insert		Appelez-nous	-
4	939886		Cap, Hinge Sleeve		Appelez-nous	-
5	2194778W		End Cap (2)		Appelez-nous	-
8	1117767		Retainer, Gasket		Appelez-nous	-
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (3)   (Replaces: 939101)				$ 7.88
13	1126179		Panel, Interior Door		Appelez-nous	-
14	2189738		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	2147080		Tube, Water Line		Appelez-nous	-
17	2198271		Harness, Door		Appelez-nous	-
18	WP2201061		Trim, Door Shelf   (Replaces: 2177884)				$ 124.32
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
20	2198196		Tube, Door Wiring		Appelez-nous	-
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
22	2149014		Insulation, Dispenser		Appelez-nous	-
23	2180204		Chute, Ice		Appelez-nous	-
24	2155335		Tap, Plate		Appelez-nous	-
25	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
26	WP2154473		Housing Connector   (Replaces: 2162412)				$ 24.83
27	WP489483		Screw   (Replaces: 489420)				$ 11.41
28	2195950		Bracket, Door Stop				$ 5.84
29	2173830		Insert, Handle		Appelez-nous	-
30	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
32	1117766		Retainer, Gasket				$ 36.55

    View Diagram in Separate Window       Print Part List
