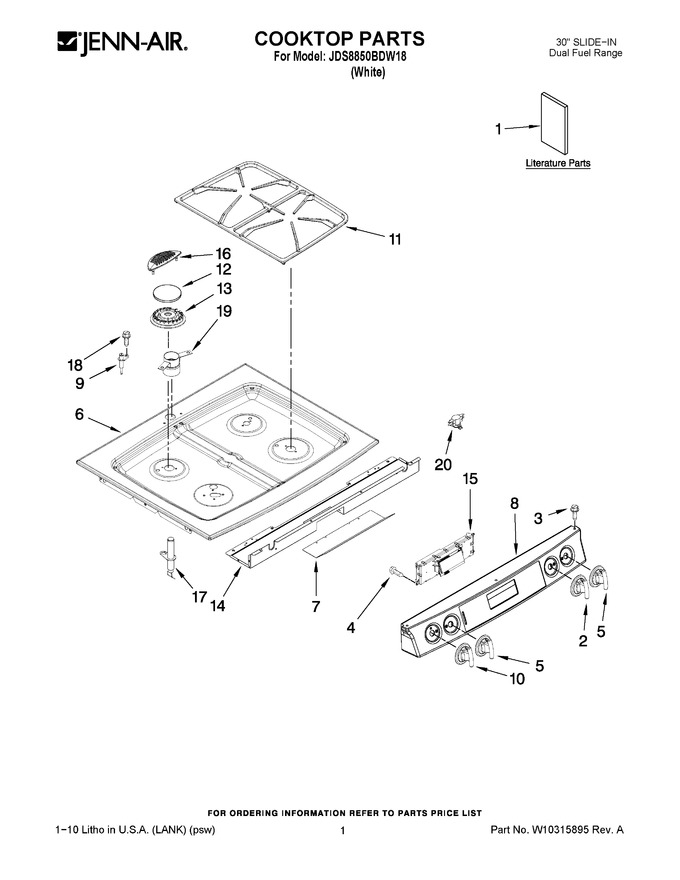

01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P698-60 | Installation, Instructions |
|
- | |||||
| 1 | 8113P756-60 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Safe Ckg Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Ckg Tips (french) |
|
- | |||||
| 1 | 8119P175-60 | Wiring Diagrams (english) |
|
- | |||||
| 1 | 8119P176-60 | Wiring Diagrams (french) |
|
- | |||||
| 2 | WP74011664 | Knob, Gas Simmer (Replaces: 7733P480-60) |
|
$ 52.00 | |||||
| 3 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 4 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 8.18 | |||||
| 5 | WP74011666 | Knob, Gas (2) (Replaces: 7733P482-60) |
|
Immediately | $ 30.63 | ||||
| 6 | W10204435 | Cooktop (white) |
|
- | |||||
| 7 | 7003P154-60 | Insulator, Control Shield |
|
- | |||||
| 8 | W10233749 | Panel, Control (white) |
|
- | |||||
| 9 | WP74009336 | Ignitor (3) (Replaces: 7432P121-60) |
|
Immediately | $ 28.34 | ||||
| 10 | WP74011665 | Knob, Dual Burner (Replaces: 7733P481-60) |
|
$ 48.51 | |||||
| 11 | 7518P485-60 | Grate, Burner (2) |
|
- | |||||
| 12 | WP8284669 | Cap, Burner (black 5k) (Replaces: 7504P202-60) |
|
Immediately | $ 75.59 | ||||
| 12 | 7504P204-60 | Cap, Burner (black 16k) |
|
- | |||||
| 12 | 7504P242-60 | Cap, Burner (inner, Dual) |
|
- | |||||
| 12 | 7504P243-60 | Cap, Burner (outer, Dual) |
|
- | |||||
| 12 | 7504P165-60 | Cap, Burner (black 12.5k) |
|
- | |||||
| 13 | 7505P349-60 | Burner, Assembly (dual, Lf) |
|
- | |||||
| 13 | 74007736 | Burner, Assembly (15k, Rf) (Replaces: 7505P306-60) |
|
Immediately | $ 117.07 | ||||
| 13 | 74007734 | Burner, Assembly (5k, Lr) (Replaces: 7505P304-60) |
|
$ 125.76 | |||||
| 13 | 74007735 | Burner, Assembly (12.5k, Rr) (Replaces: 7505P305-60) |
|
Immediately | $ 147.25 | ||||
| 14 | 3807F751-51 | Support, Cntl Pnl |
|
- | |||||
| 15 | WP8507P230-60 | Control, Erc (Replaces: 8507P230-60) |
|
$ 416.86 | |||||
| 16 | 7744P467-60 | Trim, Vent (white) |
|
- | |||||
| 17 | WP74011829 | Ignitor, Dual (Replaces: 7432P138-60) |
|
Immediately | $ 34.85 | ||||
| 18 | WP8273062 | Screw, Ignitor (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 19 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 20 | 7403P855-60 | Limit, Oven Lwr. (260f/200f) |
|
$ 61.45 |
