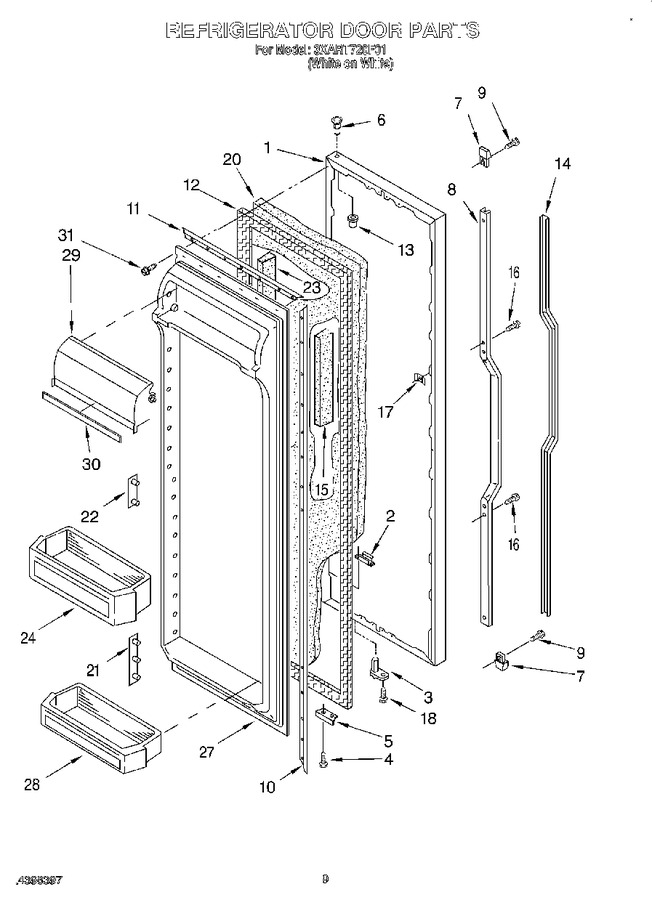

1	2194192W		Refrigerator Door Panel		Appelez-nous	-
2	2196135		Tap, Plate				$ 18.96
3	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	2195950		Bracket, Door Stop				$ 5.84
6	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
7	2194778W		End Cap, Handle		Appelez-nous	-
8	2194776W		Retainer, Insert		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2173830		Insert, Handle		Appelez-nous	-
15	1119055		Door Dike, Handle Side		Appelez-nous	-
16	WP489463		Screw   (Replaces: 489463)				$ 8.25
17	941242		Screw Anchor		Appelez-nous	-
18	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
20	876029		Foam Insulation		Appelez-nous	-
21	2196165		Pin Plate				$ 5.71
22	2196166		Pin Plate				$ 6.35
23	1115379		Door Dike, Hinge Side		Appelez-nous	-
24	2177882		Door Bin, Deep (2)		Appelez-nous	-
27	2196138		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2177883		Door Bin (2)		Appelez-nous	-
29	2148289		Compartment Door		Appelez-nous	-
30	2188148		Trim, Door Compartment		Appelez-nous	-
31	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40
