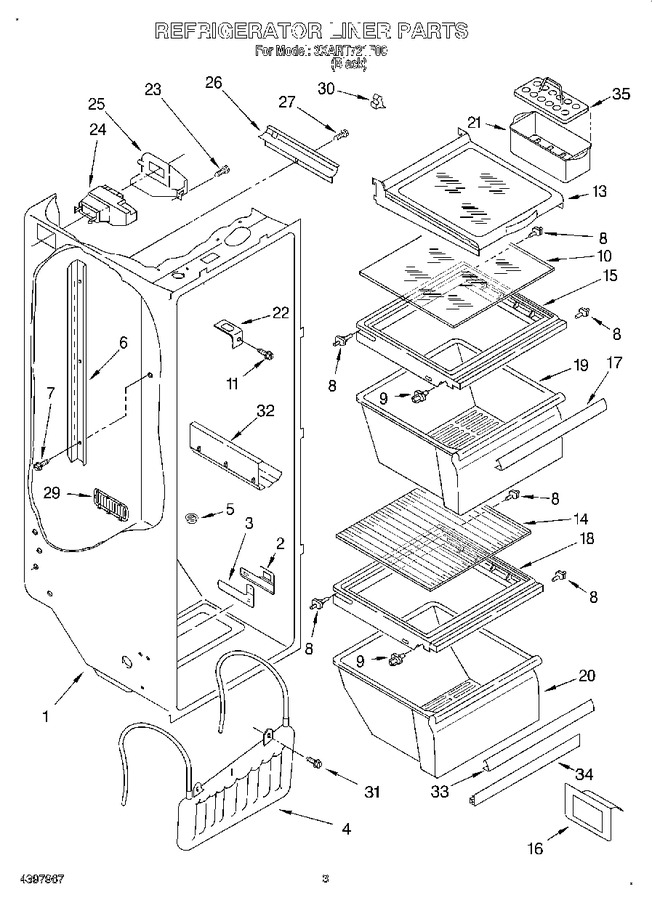

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	WP2256126		Reservoir   (Replaces: 2155290)				$ 177.29
5	2171846		Release Valve				$ 18.99
6	2181796		Shelf Ladder (2)		Appelez-nous	-
7	WP488729		Screw (6)   (Replaces: 487539)			Immediately	$ 8.28
8	4388538		Stud (8)   (Replaces: 1110718)			Immediately	$ 32.85
9	4388539		Stud, Left Front   (Replaces: 2172943)				$ 22.28
10	W10864399		Glass, Cover   (Replaces: 2174150)				$ 232.03
11	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
13	2194982		Shelf, Glass (3)		Appelez-nous	-
14	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
15	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 305.85
16	2179350		Deflector				$ 85.89
17	2194905		Trim, Crisper Pan		Appelez-nous	-
18	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
19	WP2188656		Pan, Crisper   (Replaces: 2194904)				$ 143.22
20	2194907		Meat Pan		Appelez-nous	-
21	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP489478		Screw   (Replaces: 489478)				$ 8.18
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2175155)				$ 361.52
25	WP2212240		Air Diffuser Cover   (Replaces: 2161470)				$ 138.15
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 8.24
29	2182147		Louver		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
31	488280		Screw		Appelez-nous	-
32	W10777924		Rcak, Wine & Egg   (Replaces: 2179404)				$ 24.78
33	WP2179234		Trim, Meat Pan   (Replaces: 2194906)				$ 88.57
34	2179561		Extension		Appelez-nous	-
35	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
