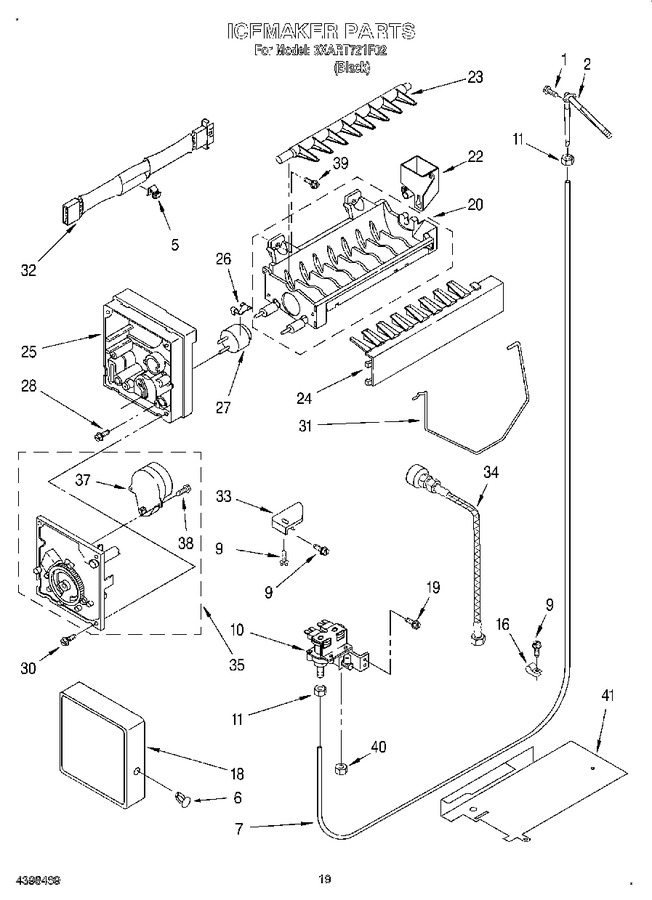

11 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting, Water Tube   (Replaces: 2196157)			Immediately	$ 12.59
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	489115		Clip				$ 5.51
7	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
9	WP489478		Screw   (Replaces: 489478)				$ 8.18
10	2187233		Valve, Solenoid				$ 110.89
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
18	WPW10289690		Cover   (Replaces: 2174183)			Immediately	$ 8.82
19	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.78
20	628282		Mold & Heater Assembly (also Order		Appelez-nous	-
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 2194711)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2195914)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 114.64
28	8533917		Screw   (Replaces: 489322)				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 2171593)			Immediately	$ 63.21
32	WP2187464		Harness, Wiring   (Replaces: 628281)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
34	2203985		European Water Connection Tube		Appelez-nous	-
35	2187134		Module Assembly (includes Items 37 & 38)		Appelez-nous	-
37	2187135		Motor		Appelez-nous	-
38	489136		Screw				$ 10.80
39	WP488163		Screw   (Replaces: 488208)				$ 7.92
40	1129179		Nut, Compression		Appelez-nous	-
41	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
41	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
41	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
41	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
41	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
41	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
41	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
41	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
41	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
41	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
41	2256178		Heat Shield   (Replaces: 2182414)		Appelez-nous	-
41	2169939		Ice Crusher Mechanism Assembly		Appelez-nous	-
41	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
41	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
41	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
41	350942		Primer White (13 Oz. Spray Can)				$ 94.14
41	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
41	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
41	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
41	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
41	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
41	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
41	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
41	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
41	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
41	833938		Kit, Terminal Connector				$ 8.47
41	2182098		Ice Container Assembly		Appelez-nous	-
