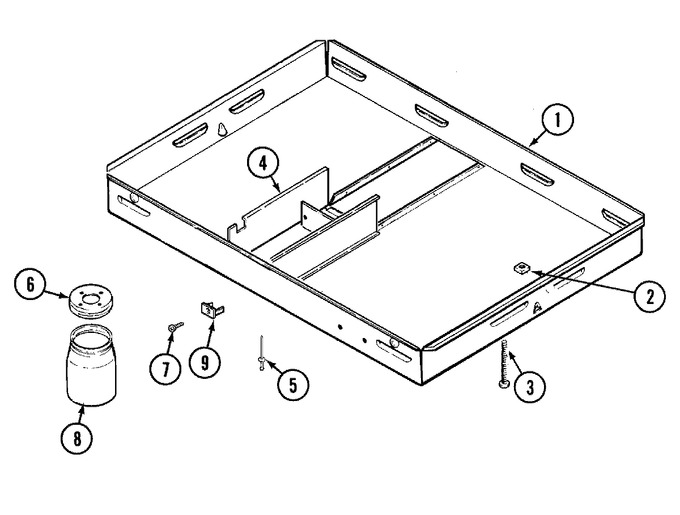

02 - Burner Box
03 - Top Assembly
04 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100395 | Box, Burner | 10 |
|
- | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 10 |
|
$ 12.66 | ||||
| 3 | Y707121 | Screw | 10 |
|
- | ||||
| 4 | 04100396 | Baffle, Burner Box | 10 |
|
- | ||||
| 5 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 10 |
|
$ 12.74 | ||||
| 6 | Y707870 | Lid, Jar | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.43 | |||
| 8 | WPY707869 | Jar, Drain (Replaces: Y707869) | 10 |
|
$ 64.50 | ||||
| 9 | M0282009 | Nut,square (Replaces: Y707124) | 10 |
|
$ 12.66 |
