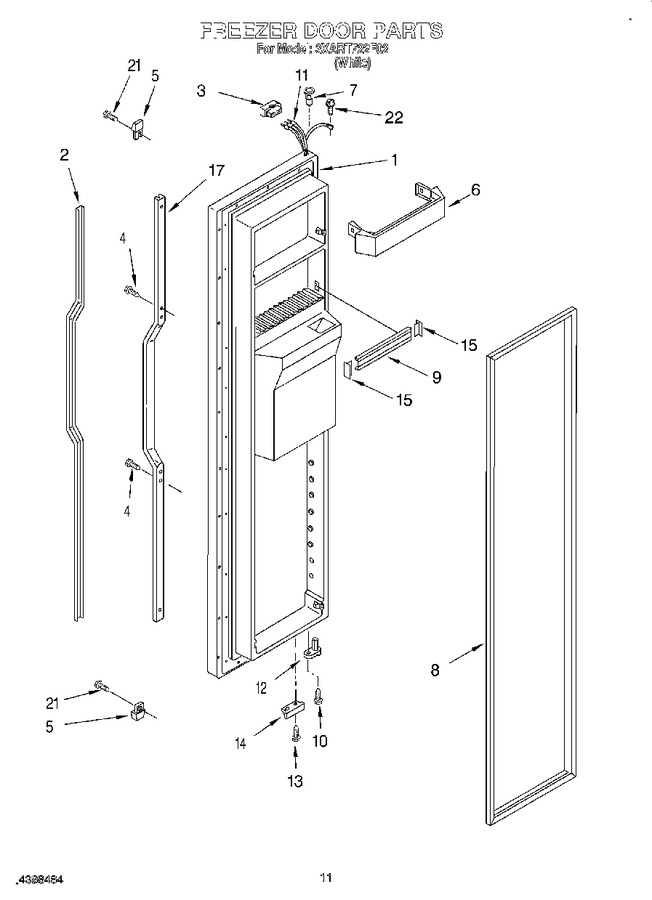

07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197743W		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2173830		Insert, Handle		Appelez-nous	-
3	2169477		Connector		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	2194778W		End Cap, Handle		Appelez-nous	-
6	WP2156021		Trivet, Shelf (4)   (Replaces: 2156021)				$ 66.43
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	2159072		Door Gasket, Magnetic (service)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 24.27
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2198271		Wire Assembly		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
17	2194776W		Retainer, Handle		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP488234		Screw   (Replaces: 489422)				$ 7.08
