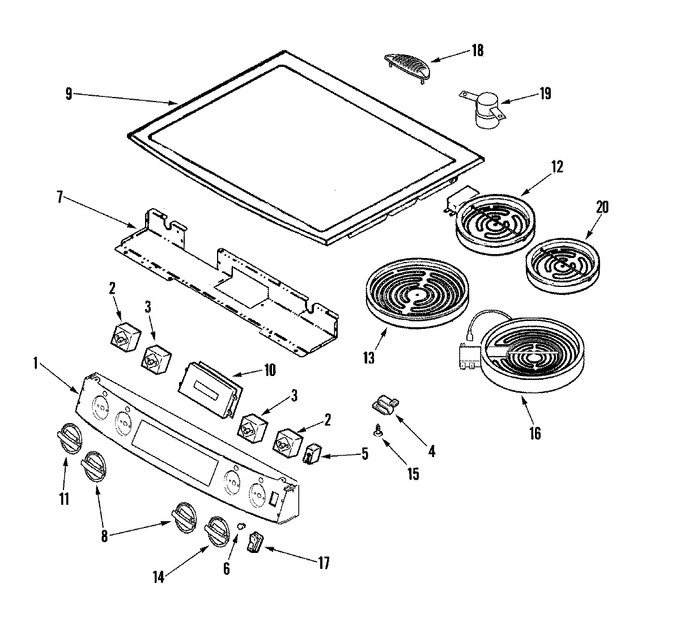

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011714 | Control Panel/switch Asy (wht) | 10 |
|
- | ||||
| 2 | WP74010824 | Switch, Element (lrg) (Replaces: 74010824) | 10 |
|
Immediately | $ 102.89 | |||
| 3 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 67.30 | |||
| 4 | 74007845 | Support, Element | 10 |
|
- | ||||
| 5 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 6 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.99 | ||||
| 7 | 74011761 | Support, Control Panel | 10 |
|
- | ||||
| 8 | WP74011493 | Knob (Replaces: 74011493) | 10 |
|
Immediately | $ 41.62 | |||
| 9 | 74011717 | Glass Top Asy (wht) | 10 |
|
- | ||||
| 10 | 74011718 | Control | 10 |
|
- | ||||
| 10 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 7.36 | ||||
| 11 | WP74011550 | Knob (Replaces: 74011550) | 10 |
|
Immediately | $ 41.09 | |||
| 12 | W10823711 | Element (1200w) (Replaces: 74008573) | 10 |
|
Immediately | $ 227.75 | |||
| 13 | W10823692 | Element, Dual (Replaces: 74011551) | 10 |
|
Immediately | $ 253.60 | |||
| 14 | WP74011631 | Knob (Replaces: 74011631) | 10 |
|
Immediately | $ 65.65 | |||
| 15 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 7.07 | ||||
| 16 | W10823718 | Element, Triple (Replaces: 74010158) | 10 |
|
Immediately | $ 364.59 | |||
| 17 | 74008717 | Switch, Rocker (wht) | 10 |
|
$ 76.32 | ||||
| 18 | 74011634 | Trim, Vent (wht) | 10 |
|
- | ||||
| 19 | 74005759 | Tube, Vent (upr) | 10 |
|
- | ||||
| 20 | 74011620 | Element (warming Zone) | 10 |
|
$ 156.95 |
