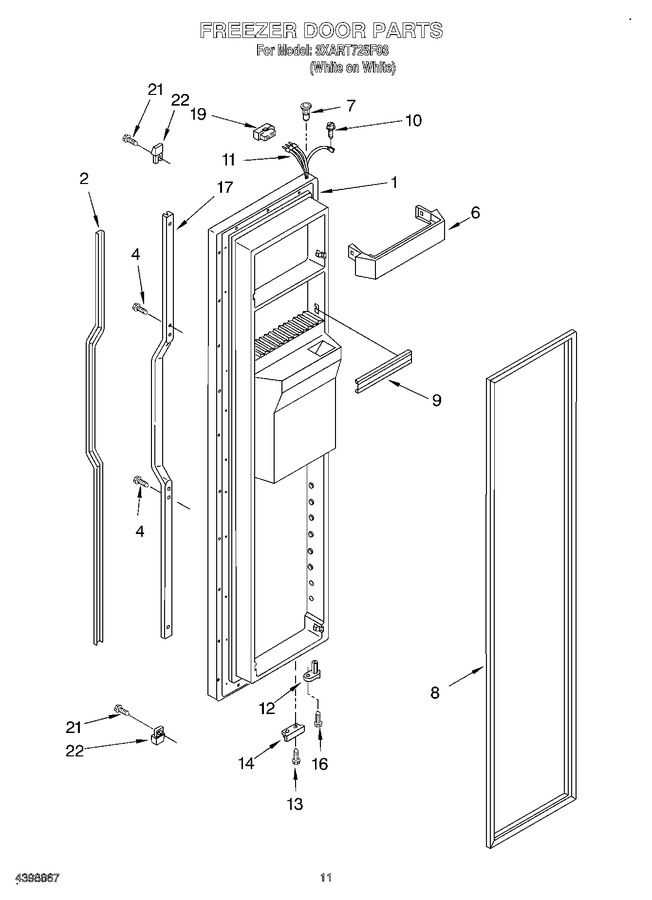

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197849W		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2173825		Insert, Handle		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	WP2171157		Trivet, Shelf (4)   (Replaces: 2171157)				$ 63.70
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP3400906		Screw   (Replaces: 489000)				$ 9.05
11	2183713		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	2194777W		Retainer, Insert		Appelez-nous	-
19	WP2154473		Connector   (Replaces: 2162412)				$ 24.83
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	2194778W		End Cap, Handle		Appelez-nous	-
