Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP22001948 Lens   (Replaces: 7730P031-60) Special Order $ 11.99

2 W10206088 Panel, Control (white) Special Order $ 281.16

2 WPW10206078 Panel, Control (black)   (Replaces: W10206078) Special Order $ 504.27

3 W11846982 Screw, Switch   (Replaces: 7101P676-60) Special Order $ 10.58

4 WP74011489 Switch, Infinite   (Replaces: 7450P056-60) In-Stock Immediately $ 106.69

5 WP8507P233-60 Control   (Replaces: 8507P233-60) Special Order $ 349.25

6 WP74011493 Knob, (4)   (Replaces: 7737P395-60) In-Stock Immediately $ 41.62

7 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.43

8 WP74004153 Light, Indicator   (Replaces: 7407P136-60) In-Stock Immediately $ 8.02

9 WP59002061 Screw, Control   (Replaces: 7101P077-60) Special Order $ 7.36

10 3807F741-80 Support, Control Panel Appelez-nous -
11 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.43

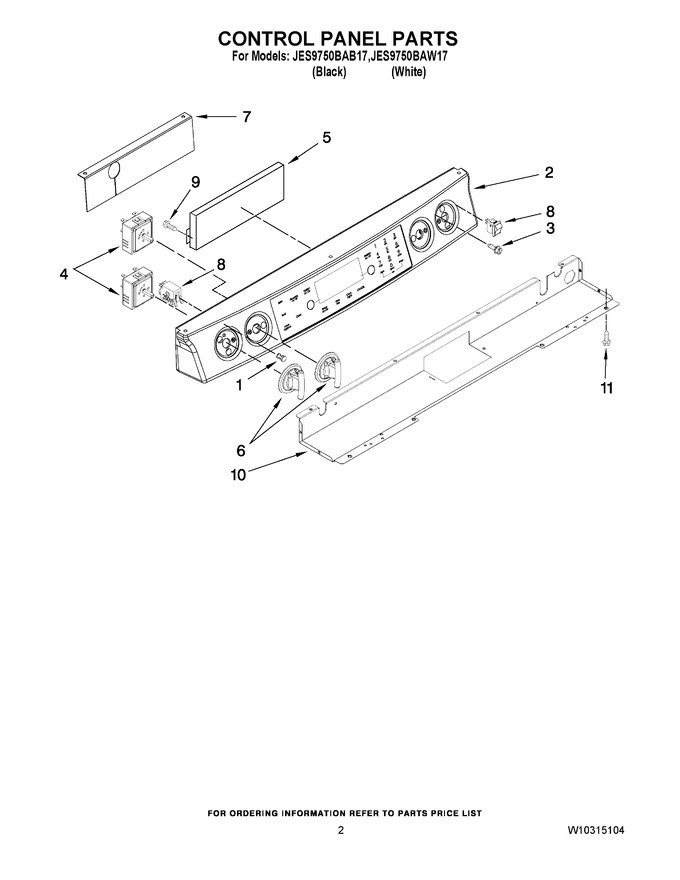

    View Diagram in Separate Window     Print Icon   Print Part List
