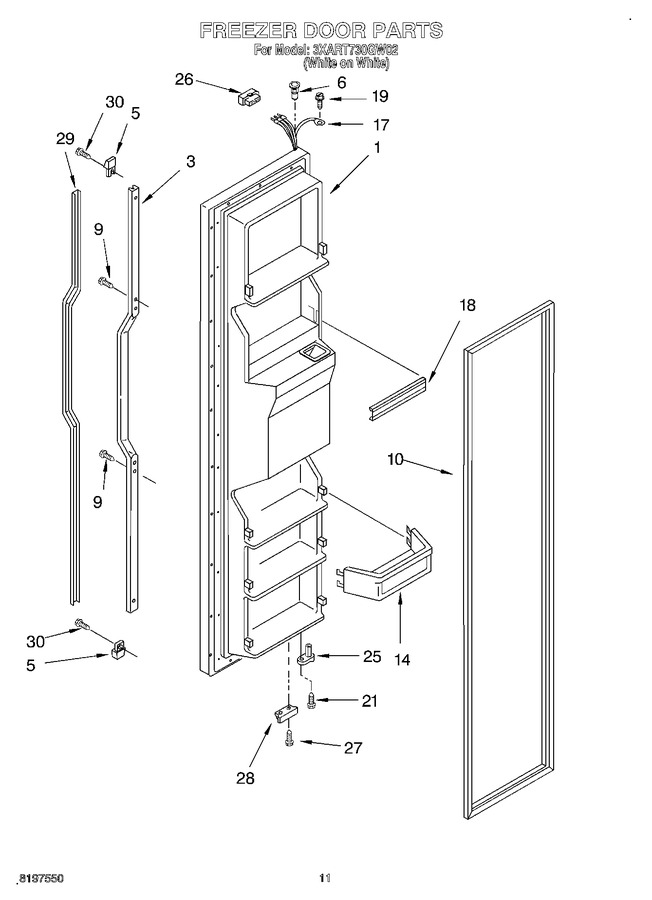

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197743W		Freezer Door		Appelez-nous	-
3	2194776W		Retainer, Insert		Appelez-nous	-
5	2194778W		End Cap (2)		Appelez-nous	-
6	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	2159072		Door, Gasket Magnetic				$ 323.60
14	WP2156021		Trim, Door Shelf (4)   (Replaces: 2204070)				$ 66.43
17	2198271		Harness, Door		Appelez-nous	-
18	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
19	WP489128		Screw   (Replaces: 8281149)				$ 11.40
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
25	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
26	WP2154473		Housing Connector   (Replaces: 2162412)				$ 24.83
27	WP489483		Screw   (Replaces: 489420)				$ 11.41
28	2195950		Bracket, Door Stop				$ 5.84
29	2173830		Insert, Handle		Appelez-nous	-
30	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
