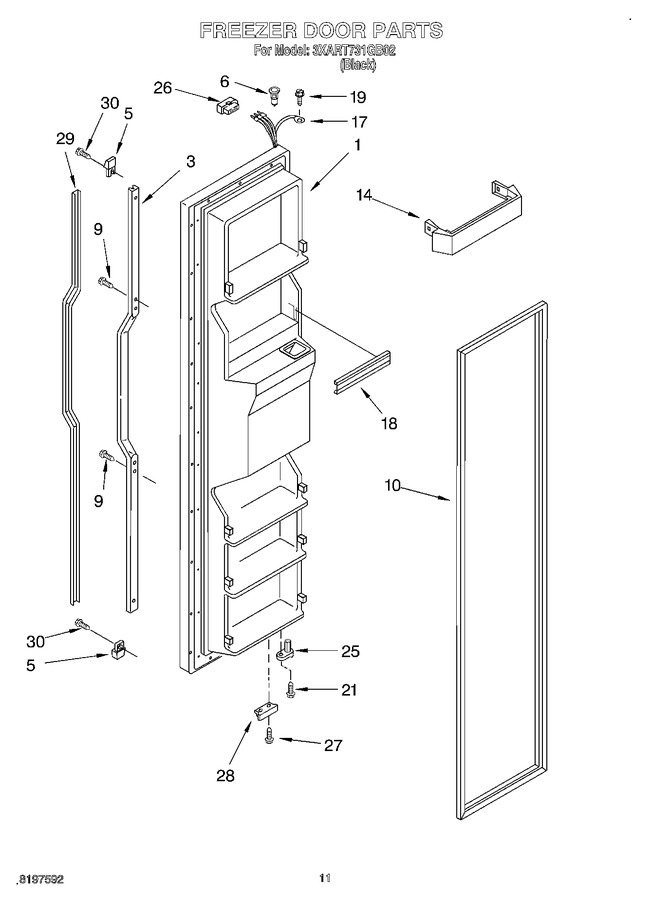

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197743B		Freezer Door (includes No.10)		Appelez-nous	-
3	2194776B		Retainer, Insert		Appelez-nous	-
5	2194778B		End Cap (2)		Appelez-nous	-
6	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	2159080		Door, Gasket Magnetic				$ 325.91
14	WP2156021		Trim, Door Shelf (4)   (Replaces: 2204070)				$ 66.43
17	2198271		Harness, Door		Appelez-nous	-
18	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
19	WP489128		Screw   (Replaces: 8281149)				$ 11.40
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
25	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
26	2169477		Housing Connector		Appelez-nous	-
27	WP489483		Screw   (Replaces: 489420)				$ 11.41
28	2195952		Bracket, Door Stop		Appelez-nous	-
29	2173832		Insert, Handle		Appelez-nous	-
30	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
