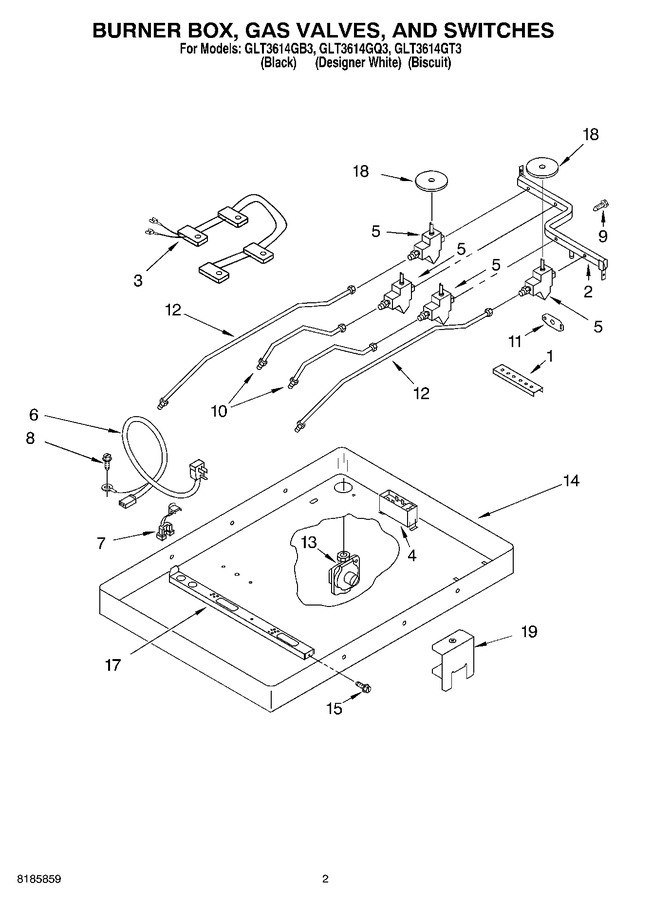

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4167077 | Nut, Tinnerman |
|
- | |||||
| 1 | 8186533 | Bracket, Cooktop Mounting (Replaces: 3183401) |
|
$ 83.57 | |||||
| 1 | 3179557 | Screw |
|
- | |||||
| 2 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 2 | 9759354 | Pipe, Manifold (Replaces: 6610010) |
|
$ 153.63 | |||||
| 3 | 3191334 | Harness & Switches |
|
$ 87.56 | |||||
| 4 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.88 | ||||
| 4 | WPW10110491 | Module, Spark (Replaces: 8522423) |
|
Immediately | $ 290.17 | ||||
| 5 | 3191292 | Valve, Burner (small (1)) |
|
$ 120.40 | |||||
| 5 | 3191293 | Valve, Burner (large (3)) |
|
$ 122.26 | |||||
| 6 | W10392007 | Power Cord (Replaces: 3192231) |
|
$ 101.06 | |||||
| 7 | 4173634 | Bushing, Cord |
|
$ 6.12 | |||||
| 8 | WP3177991 | Screw, Ground (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 9 | 3185829 | Bolt (gas Valve) |
|
- | |||||
| 10 | 3191318 | Tubing, Burner Rr & Rf |
|
$ 102.88 | |||||
| 11 | 3192491 | Bracket, Manifold |
|
- | |||||
| 12 | 3191322 | Tubing, Burner Lr & Lf |
|
- | |||||
| 13 | 3177120 | Regulator, Pressure |
|
- | |||||
| 14 | 4455816 | Box, Burner |
|
- | |||||
| 15 | WP3400806 | Screw (Replaces: 3400806) |
|
$ 7.29 | |||||
| 17 | W10203756 | Rail, Burner (2) (Replaces: 3191557) |
|
- | |||||
| 17 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 18 | WP3188425 | Seal, (4) Switch Cover (Replaces: 3191387) |
|
$ 86.74 | |||||
| 19 | 3192341 | Bracket, Bow Reducer |
|
- | |||||
| 19 | WP3192741 | Gas Conversion Kit (natural Gas To Lp Gas) (Replaces: 3192741) |
|
$ 43.89 | |||||
| 19 | 3188310 | Hardware, Mounting |
|
- |
