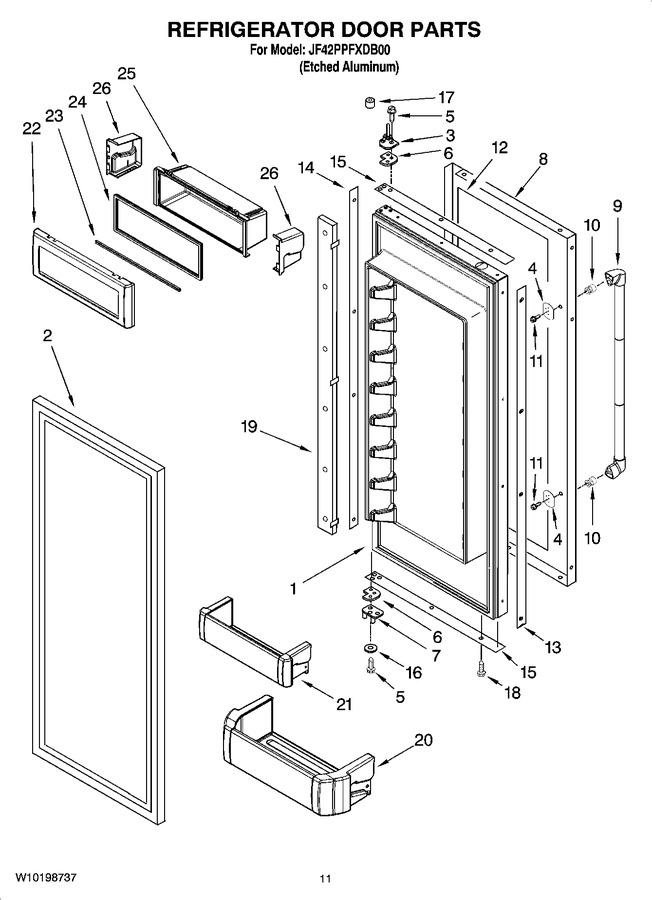

JF42PPFXDB00 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	2307903	Door, Refrigerator (includes Item 2) (left)	Appelez-nous	-
1	2307902	Door, Refrigerator (includes Item 2) (right)	Appelez-nous	-
2	8201809	Gasket, Door (Replaces: 2268265)		Immediately	$ 286.71
3	W11673500	Hinge Assembly, Top (Replaces: 2320642)		Immediately	$ 117.33
4	W10127710	Plate, Door-handle		Immediately	$ 23.35
5	W11474472	Screw, 10-32 X 3/4 (Replaces: 489282)		Immediately	$ 7.77
6	W11673500	Spacer-hinge (Replaces: 2316804)		Immediately	$ 117.33
7	2316751	Bottom Hinge Assembly (right)	Appelez-nous	-
7	2316752	Bottom Hinge Assembly (left)			$ 194.43
8	W10183779	Skin, Door	Appelez-nous	-
9	WP12859109	Handle, Door (2) (Replaces: 12859109)			$ 288.87
10	WPW10153450	Stud, Mounting (Replaces: W10153450)			$ 78.53
11	WP308544	Screw, 10-24 X 1/2 (Replaces: 308544)		Immediately	$ 7.47
12	2309218	Filler, Foam	Appelez-nous	-
13	2314068	Spacer, Door Edge (handle Side)	Appelez-nous	-
14	2316768	Spacer, Door Edge (hinge Side)	Appelez-nous	-
15	2309204	Spacer, Door Edge (top / Bottom)	Appelez-nous	-
16	WP2006346	Washer (Replaces: 2006346)		Immediately	$ 10.58
17	W11500952	Bushing, Top Hinge (Replaces: 2316760)		Immediately	$ 31.27
18	WP8281250	Screw, 8-15 X 1/2 (Replaces: 8281250)			$ 10.28
19	2307938	Mullion Assembly			$ 144.52
20	W10323746	Shelf, Door (2) (gallon) (Replaces: 2222769)			$ 97.42
21	W10323598	Shelf, Door (4) (Replaces: 2222772)			$ 94.31
22	WPW10131132	Door, Utility Bin (Replaces: W10131132)			$ 68.23
23	2222795	Rail, Lid			$ 75.70
24	WP2222981	Gasket, Utility Bin (Replaces: 2222981)			$ 192.96
25	WPW10323035	Bin, Utility (Replaces: 2222921)			$ 76.44
26	WPW10323172	End Cap, Utility Bin (right Side) (Replaces: 2222919)			$ 7.74
26	WPW10323173	End Cap, Utility Bin (left Side) (Replaces: 2222920)			$ 7.74
