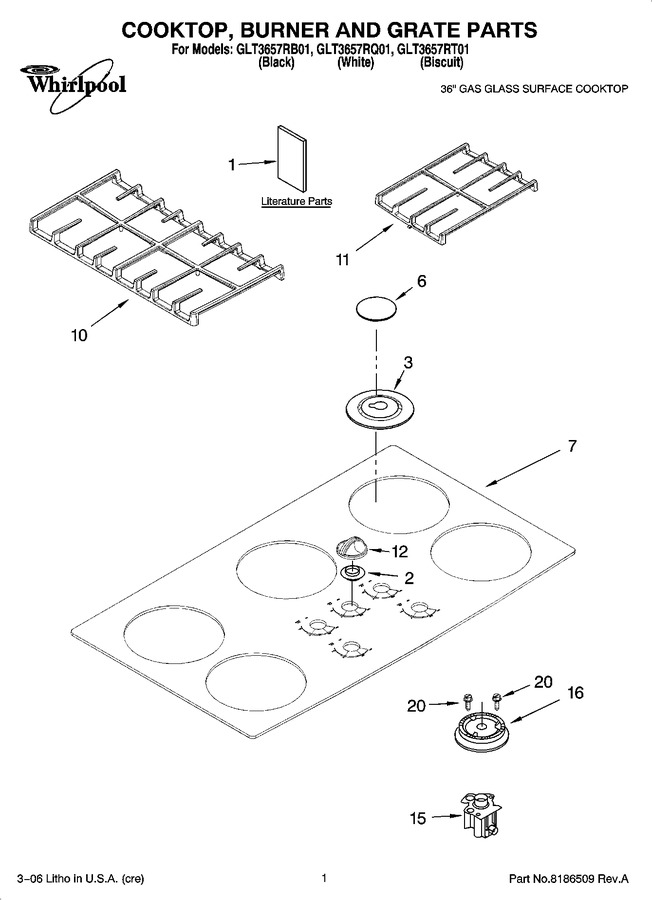

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286304		Installation Instructions		Appelez-nous	-
1	8286615		Use & Care Guide		Appelez-nous	-
1	3192099		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	8286620		L.p. Conversion Instructions		Appelez-nous	-
2	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.77
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.96
2	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	3191303		Bowl, Burner (lf) (rf) (center) (white)		Appelez-nous	-
3	3191302		Bowl, Burner (lf) (rf) (center) (black)		Appelez-nous	-
3	3191308		Bowl, Burner (rr) (lr) (white)		Appelez-nous	-
3	3191307		Bowl, Burner (rr) (lr) (black)		Appelez-nous	-
3	3191818		Bowl, Burner (lf) (rf) (center) (biscuit)		Appelez-nous	-
3	3191819		Bowl, Burner (rr) (lr) (biscuit)		Appelez-nous	-
6	WP8286153CG		Cap, Burner (rr) (lr) (cumberland Gray)   (Replaces: 8286153CG)				$ 78.80
6	WP8286153CB		Cap, Burner (rr) (lr) (coal Matte Black)   (Replaces: 8286153CB)				$ 65.06
6	8286153EP		Cap, Burner (rr) (lr) (espresso)		Appelez-nous	-
6	8286155EP		Cap, Burner (rf) (lf) (espresso)		Appelez-nous	-
6	WP8286155CG		Cap, Burner (rf) (lf) (cumberland Gray)   (Replaces: 8286155CG)				$ 95.97
6	WP8286155CB		Cap, Burner (rf) (lf) (black)   (Replaces: 8286155BL)				$ 109.94
6	8286154EP		Cap, Burner (center) (espresso)		Appelez-nous	-
6	WP8286154CG		Cap, Burner (center) (cumberland Gray)   (Replaces: 8286154CG)				$ 91.32
6	WP8286154CB		Cap, Burner (center) (black)   (Replaces: 8286154BL)				$ 81.84
7	8286267		Cooktop, Glass (biscuit)		Appelez-nous	-
7	8286264		Cooktop, Glass (white)		Appelez-nous	-
7	8286249		Cooktop, Glass (black)		Appelez-nous	-
10	8285892EP		Grate, Burner L.hand (espresso)		Appelez-nous	-
10	8285894CB		R.hand (coal Matte Black)				$ 88.74
10	8285892CG		Grate, Burner L.hand (cumberland Gray)		Appelez-nous	-
10	8285892CB		Grate, Burner L.hand (coal Matte Black)				$ 89.02
10	8285894EP		Grate, Burner R.hand (espresso)		Appelez-nous	-
10	8285894CG		Grate, Burner R.hand (cumberland Gray)		Appelez-nous	-
11	8285891EP		Grate, Center (espresso)		Appelez-nous	-
11	8285891CG		Grate, Center (cumberland Gray)		Appelez-nous	-
11	8285891CB		Grate, Center (coal Matte Black)		Appelez-nous	-
12	8286058BT		Knob, Control (5) (biscuit)		Appelez-nous	-
12	WP8286058BL		Knob, Control (5) (black)   (Replaces: 8286058BL)			Immediately	$ 23.14
12	8286058WH		Knob, Control (5) (white)				$ 22.15
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 105.57
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 111.92
15	WPW10128451		Holder, Orifice (rapide)   (Replaces: 8286180)				$ 104.79
16	WPW10406797		Head, Burner (lf) (rf)   (Replaces: 8286182)				$ 83.62
16	WPW10406283		Head, Burner (center)   (Replaces: 8286184)				$ 70.22
16	WPW10406243		Head, Burner (lr) (rr)   (Replaces: 8286181)			Immediately	$ 35.17
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
