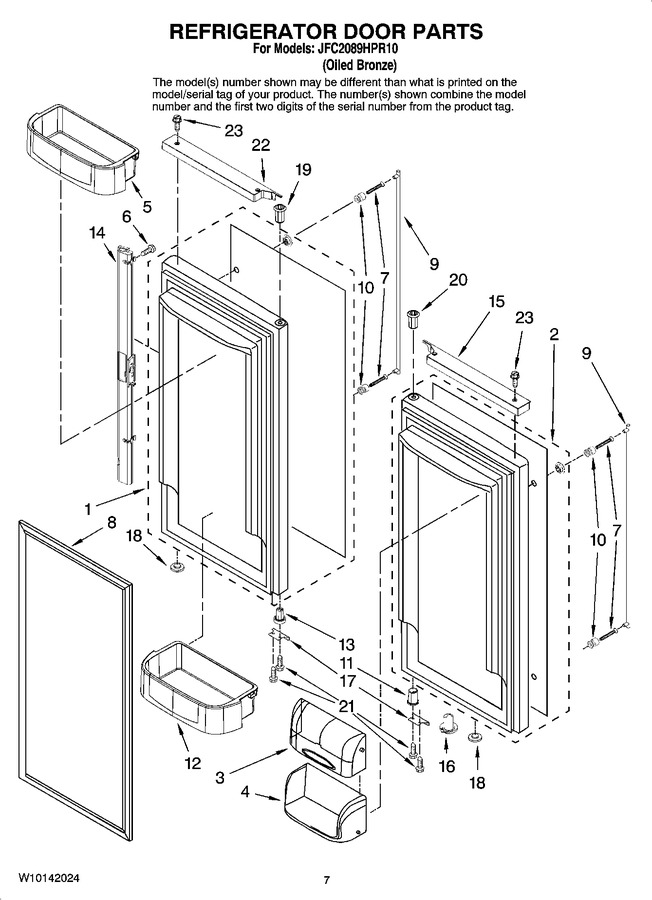

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10143255 | Door, Left (oiled Bronze) |
|
- | |||||
| 2 | W10143254 | Door, Right (oiled Bronze) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 79.21 | ||||
| 5 | 67004748 | Bin, Shelf (3) (medium) |
|
Immediately | $ 78.59 | ||||
| 6 | 67006783 | Screw |
|
- | |||||
| 7 | WPW10133608 | Screw (Replaces: W10133608) |
|
$ 9.25 | |||||
| 8 | W11368721 | Gasket, Door (2) (black) (Replaces: 12723206B) |
|
Immediately | $ 184.78 | ||||
| 9 | WP12850910 | Door Handle (stainless) (Replaces: 67004780) |
|
$ 260.71 | |||||
| 10 | 67006109 | Mount, Handle |
|
- | |||||
| 11 | WP67002731 | Bushing, Door (bottom Right) (Replaces: 67002731) |
|
Immediately | $ 7.42 | ||||
| 12 | 67004749 | Bin, Shelf (2) (gallon) |
|
$ 81.05 | |||||
| 13 | WP67002721 | Bushing, Door (bottom Left) (Replaces: 67002721) |
|
Immediately | $ 7.43 | ||||
| 14 | WP12722803B | Mullion, Door (black) (Replaces: 67003264) |
|
$ 220.83 | |||||
| 15 | 67005569 | Extension, Door (right-black) |
|
- | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 81.29 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 13.28 | ||||
| 18 | 67004838 | Plug, Button (black) |
|
$ 10.09 | |||||
| 19 | 12395501B | Bushing, Door Upper Left (black) |
|
- | |||||
| 20 | 67004978 | Bushing, Door (upper Right) (black) |
|
$ 19.89 | |||||
| 21 | WP98165 | Screw (Replaces: 67006287) |
|
$ 7.71 | |||||
| 22 | 67005567 | Extension, Door (left-black) |
|
- | |||||
| 23 | 340184 | Screw, Extension (Replaces: 67006679) |
|
$ 12.70 |
