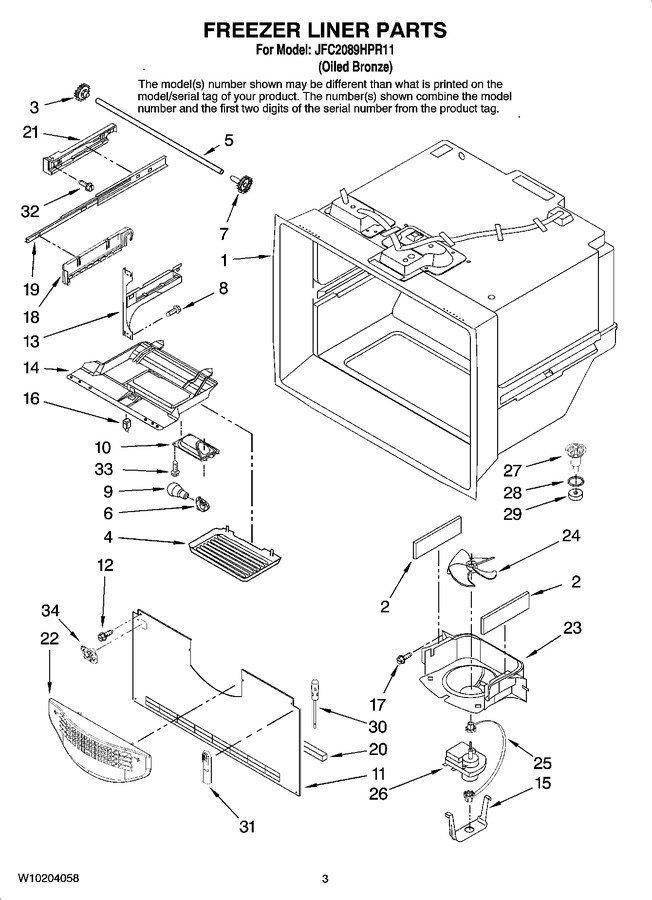

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 7.25 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) |
|
Immediately | $ 20.26 | ||||
| 4 | 67003905 | Cover, Light |
|
- | |||||
| 5 | W11028221 | Shaft (Replaces: 67004017) |
|
$ 29.92 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 12.48 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) |
|
Immediately | $ 20.26 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 67006473) |
|
$ 7.71 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 10.17 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 81.10 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 67005873) |
|
$ 84.62 | |||||
| 12 | 67006425 | Screw (4) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330994 | Bracket, Door (left) (Replaces: W10119064) |
|
Immediately | $ 152.12 | ||||
| 13 | WPW10330995 | Bracket, Door (right) (Replaces: W10119295) |
|
Immediately | $ 306.55 | ||||
| 14 | 67003906 | Housing, Light |
|
$ 116.80 | |||||
| 15 | 13058002 | Clip, Evap. Motor (Replaces: W10167028) |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 33.57 | ||||
| 17 | WP98165 | Screw (2) (Replaces: 67006287) |
|
$ 7.71 | |||||
| 18 | W10251557 | Cradle, Basket (left) (Replaces: 67004728) |
|
$ 99.04 | |||||
| 18 | W10251557 | Cradle, Basket (right) (Replaces: 67004729) |
|
$ 99.04 | |||||
| 19 | W11658403 | Slide, Drawer (2) (Replaces: W10180420) |
|
Immediately | $ 202.73 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 67002492) |
|
Immediately | $ 25.97 | ||||
| 21 | 67004972 | Adapter, Slide (right) |
|
$ 30.98 | |||||
| 21 | W10284690 | Adapter, Slide (left) (Replaces: 67004971) |
|
$ 70.70 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: W10175909) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 25 | W10121318 | Grommet |
|
$ 45.72 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: 67003636) |
|
Immediately | $ 70.88 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.00 | |||||
| 30 | 12002355 | Thermistor |
|
Immediately | $ 44.10 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.39 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 67006406) |
|
Immediately | $ 7.70 | ||||
| 33 | 67006530 | Screw |
|
- | |||||
| 34 | W11448709 | Guide, Fill Tube (Replaces: 67005874) |
|
$ 23.28 | |||||
| NI | 67006095 | Harness, Fz Module |
|
- |
