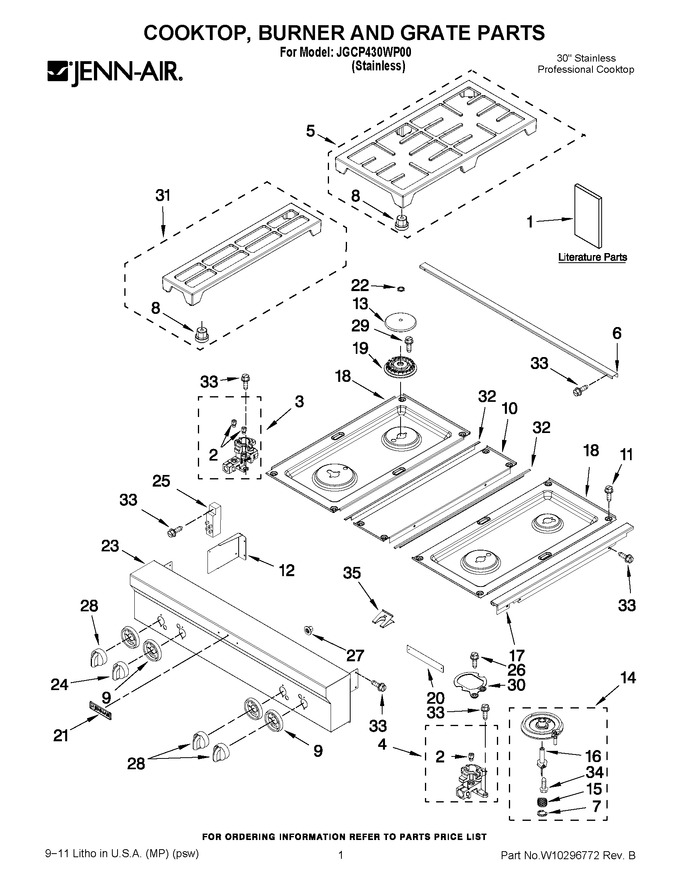

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10145395		Installation Instructions		Appelez-nous	-
1	W10221132		Tech Sheet		Appelez-nous	-
1	W10286834		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10160185		Orifice (lf - Low)				$ 73.54
2	W10160179		Orifice (lf - High)				$ 75.77
2	W10160232		Orifice (lr & Rf)				$ 45.77
3	WPW10160187		Orifice Holder Dual - Lf)   (Replaces: W10160187)				$ 73.41
4	W10160234		Orifice Holder (lr & Rf)				$ 51.39
4	W10282659		Orifice Holder (rr)				$ 36.45
5	W11344501		Grate, Burner   (Replaces: W10145532)			Immediately	$ 196.45
6	W10269218		Trim, Island				$ 238.64
7	W10160825		Clip, Electrode (dual)				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 13.92
9	W10276494		Bezel, Front				$ 72.38
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
12	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
13	WP8286816		Cap, Burner ( Lf )   (Replaces: 8286816)				$ 99.67
13	WPW10160229		Cap, Burner (lr & Rf)   (Replaces: W10160229)			Immediately	$ 103.32
13	WPW10115952		Cap, Burner (rr)   (Replaces: W10115952)				$ 107.11
14	WPW10320937		Base, Burner (lf)   (Replaces: W10250405)				$ 141.50
14	W10189082		Base, Burner (lr & Rf)		Appelez-nous	-
15	W10160826		Spring, Electrode (dual)		Appelez-nous	-
16	W10250406		Electrode (lf (dual))				$ 30.27
16	WPW10160235		Electrode (lr, Rf & Rr)   (Replaces: W10160235)				$ 37.87
16	WPW10145991		Electrode (aux)   (Replaces: W10145991)			Immediately	$ 76.02
17	W10226014		Trim, Side (left)				$ 235.04
17	W10226015		Trim, Side (right)				$ 236.87
18	W10282192		Cooktop (right)				$ 314.89
18	W10189104		Cooktop (left)				$ 146.58
19	WPW10282515		Burner Head (rr (aux))   (Replaces: W10282515)			Immediately	$ 134.88
19	WPW10250459		Burner Head (lf)   (Replaces: W10250459)			Immediately	$ 138.81
19	W10250458		Burner Head (lr & Rf)		Appelez-nous	-
20	W10250433		Cover, Plate		Appelez-nous	-
21	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 79.69
22	W10115953		Nut, Burner				$ 8.80
23	W10910410		Assembly, Console   (Replaces: W10295780)				$ 394.70
24	W10145568		Knob, Control (dual - Lf)				$ 47.63
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 346.50
26	8286930		Gasket, Orifice Holder Aux				$ 86.16
27	7103P166-60		Nut, Hex				$ 16.70
28	W10145454		Knob, Control				$ 42.25
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 13.27
30	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
31	W11241675		Grate, Filler   (Replaces: W10276495)				$ 175.28
32	W10271524		Trim				$ 191.11
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
34	7101P501-60		Screw		Appelez-nous	-
35	8286863		Spring, Electrode				$ 69.23
