01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts

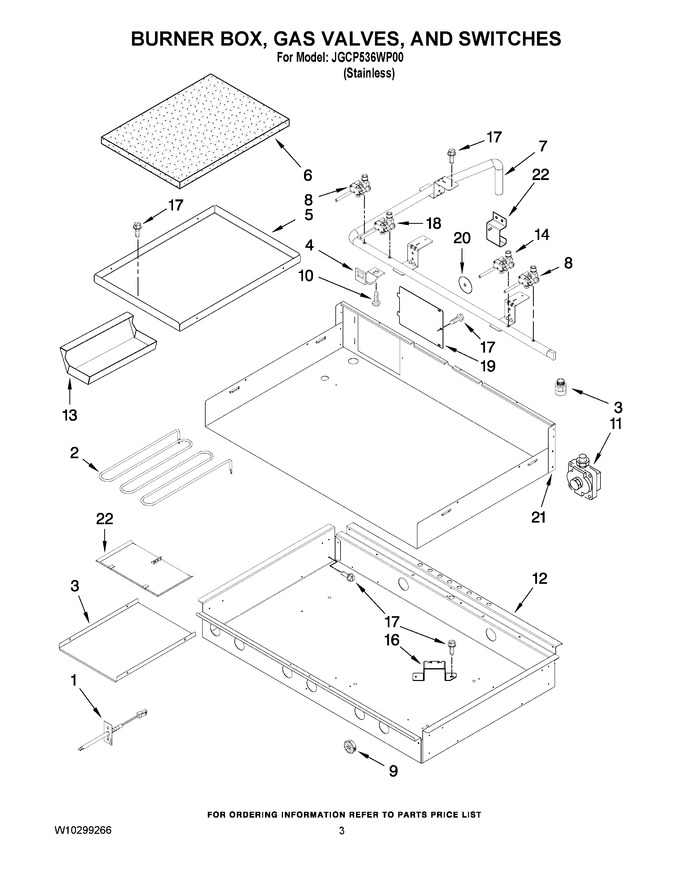

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 94.50
2	W10193014		Element, Griddle				$ 291.11
3	W10145620		Tray, Element Griddle		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10246074		Tray, Insulation Griddle		Appelez-nous	-
6	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
7	W10115985		Manifold		Appelez-nous	-
8	W10250407		Valve, Single (lr & Rf)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	WP9759091		Regulator,pressure   (Replaces: 9759091)			Immediately	$ 306.39
12	W10250425		Burner Box		Appelez-nous	-
13	W10276497		Drip Tray, Griddle				$ 363.63
14	WPW10385583		Valve, Simmer   (Replaces: W10284547)			Immediately	$ 298.89
16	W10280796		Bracket, Burner (1)		Appelez-nous	-
16	W10115929		Bracket, Burner (3)		Appelez-nous	-
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
18	WPW10371235		Valve, Gas (lf)   (Replaces: W10250410)			Immediately	$ 298.94
19	W10115843		Cover, Ignition		Appelez-nous	-
20	W10189177		Seal, Switch Cover				$ 9.00
21	W10189156		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 77.27
NI	W10115908		Tubing, Gas (lr & Rr)		Appelez-nous	-
NI	W10115910		Tubing, Gas (lf & Rf)				$ 176.20
NI	W10115911		Tubing, Gas (lf - Simmer)				$ 169.51
NI	W10280797		Tubing, Gas		Appelez-nous	-
