SELECT A DIAGRAM

01 - Blower Plenum


02 - Body


03 - Gas Controls


04 - Top Assembly


05 - Wiring Information

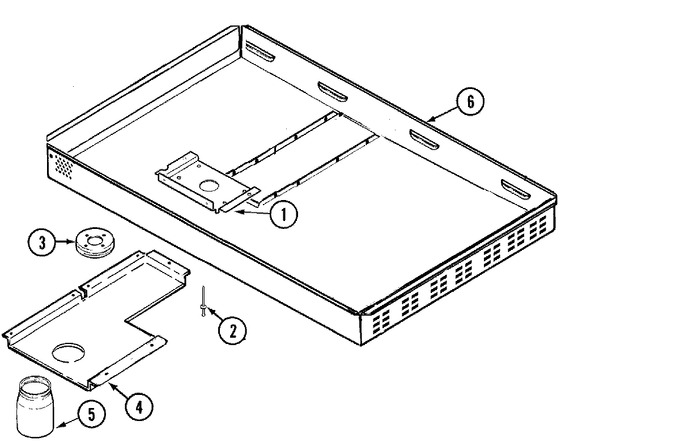

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006611		Cover, Gas	11			$ 7.82
1	74006147		Cover, Gas	10	Appelez-nous	-
1	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.43
2	Y707664		Washer	10	Appelez-nous	-
2	WP210720		Rivet   (Replaces: 701662)	10			$ 12.74
3	Y707870		Lid, Jar ----s	10	Appelez-nous	-
3	M0282009		Nut,square   (Replaces: Y707124)	10			$ 12.66
3	Y707121		Screw	10	Appelez-nous	-
4	74006148		Baffle, Burner Box	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.43
5	WPY707869		Jar, Drain   (Replaces: Y707869)	10			$ 64.50
6	Y052721		Nut   (Replaces: Y704553)	10			$ 22.46
6	74005867		Box, Burner	10	Appelez-nous	-
6	71003131		Screw	10		Immediately	$ 6.37

    View Diagram in Separate Window       Print Part List
