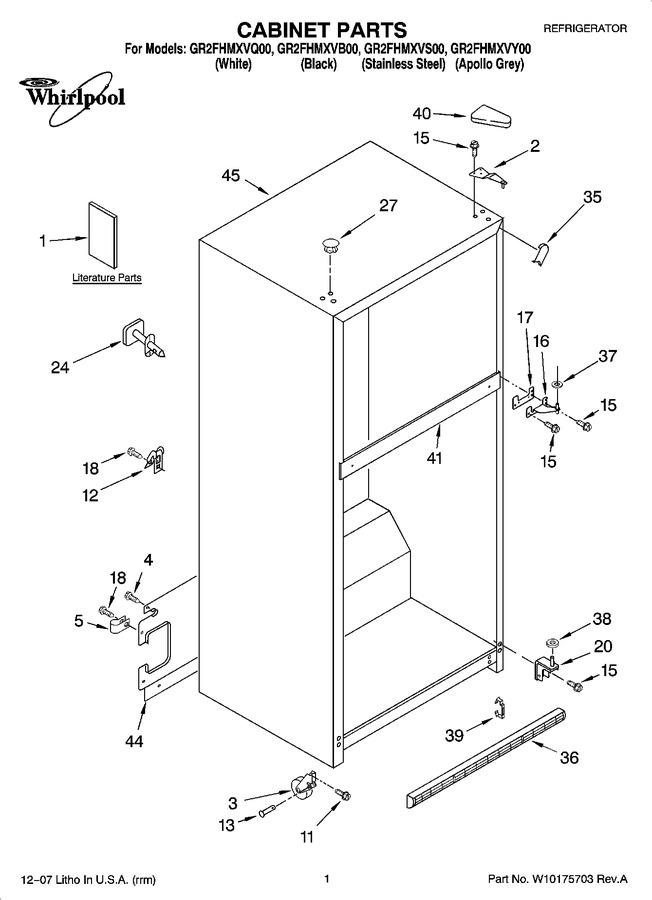

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | W10142143 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10173293 | Energy Label |
|
- | |||||
| 1 | W10131409 | Use & Care Guide (bilingual) |
|
- | |||||
| 1 | W10131417 | Use & Care Guide (trilingual) |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 107.48 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 10.73 | |||||
| 11 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 12 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 13 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 17 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 18 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 20 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 27 | WPW10520307 | Hole Plug (6) (apollo Grey) (Replaces: 2254506) |
|
Immediately | $ 6.80 | ||||
| 27 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 27 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 17.11 | |||||
| 35 | W11252732 | Corner Filler (2) (black) (Replaces: 2201017) |
|
$ 11.76 | |||||
| 35 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2201014) |
|
$ 7.39 | |||||
| 35 | W10851579 | Corner Filler (2) (apollo Grey) (Replaces: 2254507) |
|
Immediately | $ 6.80 | ||||
| 36 | 2254313 | Grille (includes Illus. 39) (white) |
|
$ 41.62 | |||||
| 36 | 2254530 | Grille (includes Illus. 39) (apollo Grey) |
|
- | |||||
| 36 | 2254315 | Grille (includes Illus. 39) (black) |
|
$ 41.54 | |||||
| 37 | WP489467 | Washer-plain (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 38 | WP487576 | Washer-nylon (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 39 | 2189356 | Clip-grille (2) |
|
$ 5.70 | |||||
| 40 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 18.17 | |||||
| 40 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 17.21 | ||||
| 40 | W10853622 | Cover, Hinge (apollo Grey) (Replaces: 2254510) |
|
Immediately | $ 74.21 | ||||
| 44 | 2254576 | Cover, Unit |
|
$ 48.13 |
