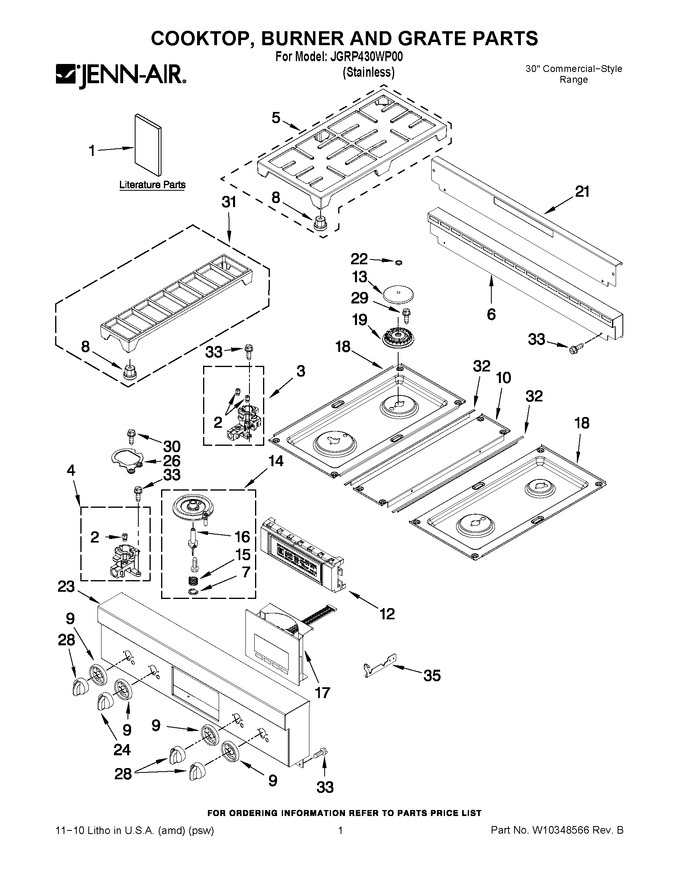

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10323233 | Tech Sheet (english) |
|
- | |||||
| 1 | W10323234 | Tech Sheet (french) |
|
- | |||||
| 1 | W10322721 | Use & Care Guide |
|
- | |||||
| 1 | W10322719 | Installation Instructions |
|
- | |||||
| 2 | W10160185 | Orifice (lf - Low) |
|
$ 73.54 | |||||
| 2 | W10791075 | Orifice (rr) (Replaces: W10282663) |
|
$ 93.31 | |||||
| 2 | W10160232 | Orifice (lr & Rf) |
|
$ 45.77 | |||||
| 2 | W10160179 | Orifice (lf - High) |
|
$ 75.77 | |||||
| 3 | WPW10160187 | Orifice Holder Dual - Lf) (Replaces: W10160187) |
|
$ 73.41 | |||||
| 4 | W10160234 | Orifice Holder (lr & Rf) |
|
$ 51.39 | |||||
| 4 | W10282659 | Orifice Holder (rr) |
|
$ 36.45 | |||||
| 5 | W11344501 | Grate, Burner (Replaces: W10276551) |
|
Immediately | $ 196.45 | ||||
| 6 | W10323247 | Trim, Island |
|
$ 355.56 | |||||
| 7 | W10160825 | Clip, Electrode |
|
$ 52.85 | |||||
| 8 | 9759322 | Rubber, Foot |
|
- | |||||
| 9 | W10276494 | Bezel |
|
$ 72.38 | |||||
| 10 | W10189105 | Filler, Cooktop |
|
- | |||||
| 12 | W10344181 | Assembly, Keypad |
|
- | |||||
| 13 | WPW10160229 | Cap, Burner (lr & Rf) (Replaces: W10160229) |
|
Immediately | $ 103.32 | ||||
| 13 | WP8286816 | Cap, Burner (rr) (Replaces: 8286816) |
|
$ 99.67 | |||||
| 13 | WPW10115952 | Cap, Burner (lf) (Replaces: W10115952) |
|
$ 107.11 | |||||
| 14 | WPW10320937 | Base, Burner (rr) (Replaces: W10250405) |
|
$ 141.50 | |||||
| 14 | W10189082 | Base, Burner (lr & Rf) |
|
- | |||||
| 15 | 8286863 | Spring, Electrode (rr) |
|
$ 69.23 | |||||
| 15 | W10160826 | Spring, Electrode (lf, Lr & Rf) |
|
- | |||||
| 16 | WPW10145991 | Electrode (rr) (Replaces: W10145991) |
|
Immediately | $ 76.02 | ||||
| 16 | W10250406 | Electrode (lf (dual)) |
|
$ 30.27 | |||||
| 16 | WPW10160235 | Electrode (lr & Rf) (Replaces: W10160235) |
|
$ 37.87 | |||||
| 17 | WPW10145531 | Supply, Power (Replaces: W10145531) |
|
Immediately | $ 280.13 | ||||
| 18 | W10282192 | Cooktop (right) |
|
$ 314.89 | |||||
| 18 | W10189104 | Cooktop (left) |
|
$ 146.58 | |||||
| 19 | W10250458 | Burner Head (lr & Rf) |
|
- | |||||
| 19 | WPW10250459 | Burner Head (lf) (Replaces: W10250459) |
|
Immediately | $ 138.81 | ||||
| 19 | WPW10282515 | Burner Head (rr) (Replaces: W10282515) |
|
Immediately | $ 134.88 | ||||
| 21 | W10323248 | Insert, Island Trim |
|
$ 241.20 | |||||
| 22 | W10115953 | Nut, Burner |
|
$ 8.80 | |||||
| 23 | W10295784 | Panel, Control |
|
- | |||||
| 24 | W10145568 | Knob, Control |
|
$ 47.63 | |||||
| 26 | 8286930 | Gasket, Orifice Holder |
|
$ 86.16 | |||||
| 28 | W10145454 | Knob, Control |
|
$ 42.25 | |||||
| 29 | W11404293 | Screw (Replaces: W10078270) |
|
Immediately | $ 13.27 | ||||
| 30 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 31 | W11241675 | Grate, Filler (Replaces: W10276495) |
|
$ 175.28 | |||||
| 32 | W10271524 | Trim |
|
$ 191.11 | |||||
| 33 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 13.25 | ||||
| 35 | W10130759 | Bracket, Moving Console (right) |
|
$ 68.35 | |||||
| 35 | W10130760 | Bracket, Moving Console (left) |
|
$ 68.35 |
